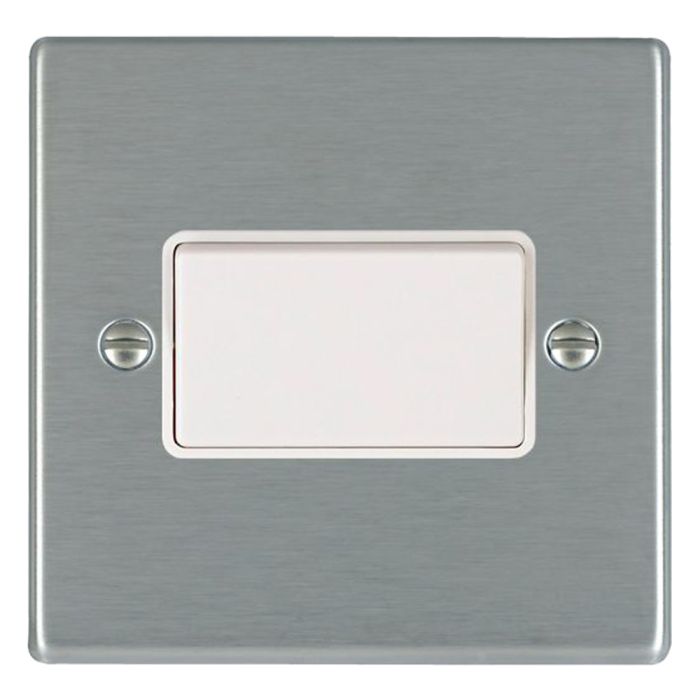

Hamilton Hartland Fan Isolator Switch Satin Steel White

Product Code 74TPWH-W

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£11.72

exc VAT

£14.06 : inc VAT

£14.06

inc VAT

£11.72 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £11.72 £14.06
  • 3+ £11.55 £13.86

Qty:

Hamilton Hartland 10A triple pole fan isolator switch in satin steel finish with a white insert. A fan isolator switch allows for extractor fan maintenance and cleaning by safely isolating it. A low profile plate depth of only 5mm, makes it ideal for sleek and stylish interiors. Hamilton Hartland is the UK's leading wiring accessories brand, designed and manufactured in Britain, with large stock quantities available and no extended lead times.

Features of Hamilton Hartland Fan Isolator Switch:

  • Super slim stylish profile plate only 5mm thick
  • Safe isolation for bathroom extractor fan for maintenance and cleaning
  • IP Rating: IP2XD - must be installed outside bathroom zones 0, 1 and 2
  • Back box required: 1 gang, minimum depth 25mm
  • Finish: Satin Steel
  • Insert Colour: White
  • Height: 88mm
  • Width: 88mm
  • Plate Depth: 5mm
  • Overall Depth: 21.5mm
  • Amperage: 10A
  • Voltage: 230V
  • Manufacturer Number: 74TPWH-W
  • Largest UK wiring accessories provider - Manufactured in Britain
  • Standards: BS EN 60669-1
  • 1 Year Warranty



View all Hamilton Hartland Satin Steel Range

View all Hamilton Euro Modules

View all Hamilton Grid

View all Hamilton Litestat

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, please give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Hamilton Hartland 74TPWH-H Datasheet
Manufacturer Hamilton Litestat
Range Hartland
Model Number 74TPWH-W
Material Metal
Finish Satin Steel
Equivalent Finishes Brushed Chrome, Brushed Metal, Brushed Nickel, Satin Stainless
Insert Type 1 gang 10A Triple Pole Rocker
Insert Colour White/White
Commodity Code 85363010
Luckins TSI 385553625
Height 88mm
Width 88mm
PLate Depth 5mm
Weight 108g
Back Box Depth Minimum 25mm
Switched Poles Triple
Current Rating 10A
Voltage 230V
Maximum Load 10A resistive
Mains Frequency 50Hz
IP Rating IP2XD
Contact Gap Minimum 3mm
Terminal Capacity 1 5 x1mm²
Terminal Capacity 2 4x1.5mm²
Terminal Capacity 3 1x2.5mm²
Terminal Capacity 4 1x4mm² Multi-strand
Terminal Capacity 5 1x6mm²
Earth Terminal Capacity 1 5x1mm²
Earth Terminal Capacity 2 4x1.5mm²
Earth Terminal Capacity 3 3x2.5mm²
Earth Terminal Capacity 4 1x4mm² Multi-strand
Earth Terminal Capacity 5 1x6mm²
Product Class 1 Must be earthed
Ambient Operating Temperature -5° to +40°C
Recommended Location Internal Use Only
Maximum Installation Altitude 2000m
Standard/Approval BS EN 60669-1
Warranty 1 Years
