Wago Connectors FAQ’s
How To Use Wago Connectors
How Do Wago Connectors Work?
How Does the Wagobox Work?
Can You Use Wago Connectors on 6mm Cable?
What is the Difference Between Wago 221 and 222 Connectors?
Are Wago Connectors Safe?
Do Wago Connectors Need to be in a Box?
How To Use Wago Connectors
How to Use Wago Connectors for Easy and Secure Electrical Installations
Wago lever connectors can be used with solid, stranded, and flexible copper wires. Before connecting the wires, ensure that they are stripped to the correct length according to the markings on the side of your Wago connector. Once the wires are appropriately prepared, follow these steps:
1. Open the lever on the Wago connector.
2. Insert the stripped wire into the connector's opening.
3. Close the lever to securely clamp the wire in place.
4. Ensure that the connection is firm and secure before proceeding.

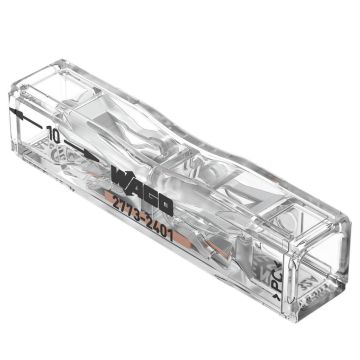

Wago Push connectors are designed for clamping stranded or solid conductors. Before connecting the wires, strip them to the strip length indicated on the built-in strip-length gauge on the connector.
1. Insert the stripped conductor into the connector's opening.
2. The connector's internal mechanism will automatically clamp the wire, creating a secure connection.
Ensure that the connection is tight and reliable.
3. Remember, it is crucial to double-check the strip lengths recommended by the specific Wago connector series you are using. This ensures a proper and secure connection.
By following these simple steps, you can confidently use Wago connectors for your electrical installations, making the process efficient and hassle-free.
How Do Wago Connectors Work?
Wago connectors are designed to simplify the splicing process without the need for tools. The connectors utilise Wago's unique clamp technology, enabling faster installation and eliminating the need for maintenance. Wago connectors are reusable, reducing both installation time and costs. The clamps are specifically designed to terminate fine stranded and solid stranded conductors securely.
When using Wago connectors, the process is straightforward. Once the wire is inserted into the connector, the Wago clamp mechanism automatically secures the conductor and encloses its insulation. This ensures that the conductor remains safely isolated from any live parts, enhancing overall safety during electrical connections.
One popular type of Wago connector is the Push Wire Clamp, which is particularly suitable for terminating solid copper conductors. This tool-free clamp is incredibly user-friendly and requires only the simple action of pushing the conductor into the connector for installation.
The Wagobox system, offers a highly efficient and time-saving solution for electrical installations. The installation time is much less compared to traditional style junction boxes with the process being streamlined and hassle-free.
How Does the Wagobox Work?
The Wagobox utilises Wago 222 and 773 Series terminal blocks, which are quick and easy to install. Unlike traditional junction boxes, the terminal blocks are fitted outside of the box, eliminating the need for fiddling with cables and cutting them to size within a confined space.

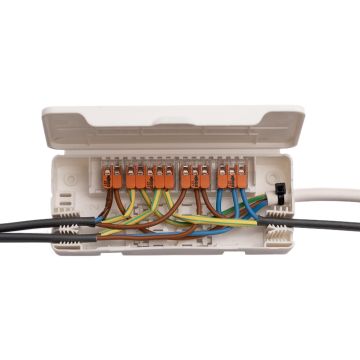

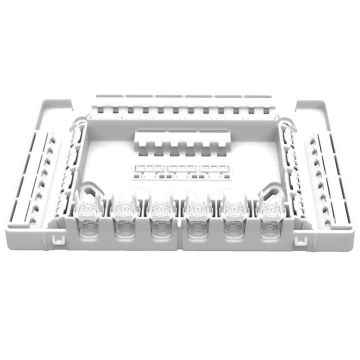

Once the cables are connected, the terminal blocks can be effortlessly slid into position before securing the cables. The Wagobox features a cable gripper that is both quick and simple to configure. There are no screws or clamp bars involved. Each gripper slot has its own black plastic pressure spring, which can be installed into one of two slots or removed as needed. By using a pair of cutters or narrow nosed pliers, the gripper spring can be positioned, allowing the cables to be easily pushed into place. Within seconds, the cables are securely clamped and held in place.
The Wagobox is highly versatile and can be configured to suit a variety of electrical tasks, such as connecting LV lighting transformers, distributing power to multiple loads, or extending an oven circuit. The integrated cable gripper can effectively secure flex and 6242Y/6243Y cables ranging from 1.0mm² to 6.0mm² within seconds. The snap shut lid of the Wagobox locks into place, closing the gripper slots and preventing any cables from becoming loose.
The Wago 222 and 773 Series terminal blocks used in the Wagobox offer distinct advantages over traditional screw terminals. They are designed to resist loosening caused by temperature cycling, vibration, or conductor settling over time. The materials used in these terminal blocks are inherently corrosion resistant, ensuring long-lasting performance. The specific pressure exerted onto the conductors during termination guarantees a gas-tight connection every time, protecting the integrity of the electrical system.
With its efficient installation process, secure cable grip, and reliable terminal blocks, Wago connectors, especially the Wagobox system, provide a superior solution for electrical installations. Save time, reduce hassle, and achieve a dependable and professional result with Wago connectors.
Can You Use Wago Connectors on 6mm Cable?
Yes, Wago connectors can be used on a range of cable sizes, including 6mm cable. Wago 221 series can accomodate 6mm cable, providing a reliable and convenient solution for electrical installations
What is the Difference Between Wago 221 and 222 Connectors?
The Wago 221 and 222 are both series of connectors produced by Wago. Here are the main differences between them:
Wago 221 Series:

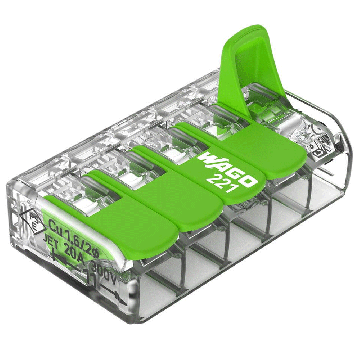

- The Wago 221 Series connectors are known as Lever-Nuts.
- These connectors are designed to connect solid, stranded, and flexible copper wires.
- The wire typically needs to be stripped to a length of 11 millimeters.
- They feature a compact size and are suitable for use in tight spaces.
- The connectors have a lever mechanism that allows for easy and tool-free wire insertion and removal.
- The Wago 221 connectors are available in various models with different wire entry options.
Wago 222 Series:
- The Wago 222 Series connectors are also known as Lever-Nuts.
- Similar to the 221 Series, these connectors are designed to connect solid, stranded, and flexible copper wires.
- The wire usually needs to be stripped to a length of 10 millimeters.
- They also feature a lever mechanism for quick and tool-free wire termination.
- The Wago 222 connectors are slightly larger in size compared to the 221 series.
- These connectors provide a higher current-carrying capacity than the 221 series.
In summary, the main differences between the Wago 221 and 222 series are the wire stripping length, size, and current-carrying capacity. Both series offer convenient lever-based wire termination, but the 222 series provides a higher current rating and may be more suitable for applications with larger wire sizes or higher electrical loads.
Are Wago Connectors Safe?
Wago is a reputable brand that manufactures high-quality connectors that prioritise safety and reliability, as well as ease of use. Here are some reasons why Wago connectors are considered safe:
Insulation: Wago connectors are designed to enclose and insulate the connected wires, preventing them from coming into contact with live parts or other conductors. This helps to minimize the risk of electrical shock or short circuits.
Secure Connection: Wago connectors utilize clamping mechanisms or lever systems to securely hold the wires in place. This ensures a reliable and stable connection, reducing the risk of loose connections, arcing, or overheating.
Compliance with Standards: Wago connectors are manufactured in accordance with industry standards and undergo rigorous testing to meet safety requirements. They are often certified by relevant authorities, such as CE, ensuring they meet appropriate safety standards.
Durability: Wago connectors are designed to withstand various environmental conditions and maintain their electrical performance over time. They are made from high-quality materials that are resistant to corrosion and wear, ensuring long-term reliability.
Ease of Installation: Wago connectors are designed for easy and tool-free installation, reducing the risk of improper connections caused by human error. This simplifies the installation process and helps to ensure safe and accurate wiring.
While Wago connectors are generally safe to use, it is still important to follow proper installation practices and adhere to relevant electrical codes and regulations. Proper wire stripping, correct wire sizing, and secure connection are crucial for maintaining safety when using any electrical connectors.
Do Wago Connectors Need to be in a Box?
Wago connectors are designed to provide safe and reliable electrical connections. In general, Wago connectors do require a separate box for installation. However, it is important to consult the appropriate electrical guidelines to determine if the use of a box is required for your specific installation. Wago offers two enclosures for their connectors, the WagoBox for maintenance free installations and the Wagobox Light primarily used for lighting installations.
