Hydra Dion 40kW Fast DC EV Charger Dual

Product Code HD-40-DC-BLK


Add Your Review

Available for Delivery only, change to Fast Delivery Service


exc VAT

£12,500.00 : inc VAT


inc VAT

£10,416.67 : exc VAT

  • QTY Unit Price
  • 1-2 £10,416.67 £12,500.00
  • 3+ £10,359.87 £12,431.84

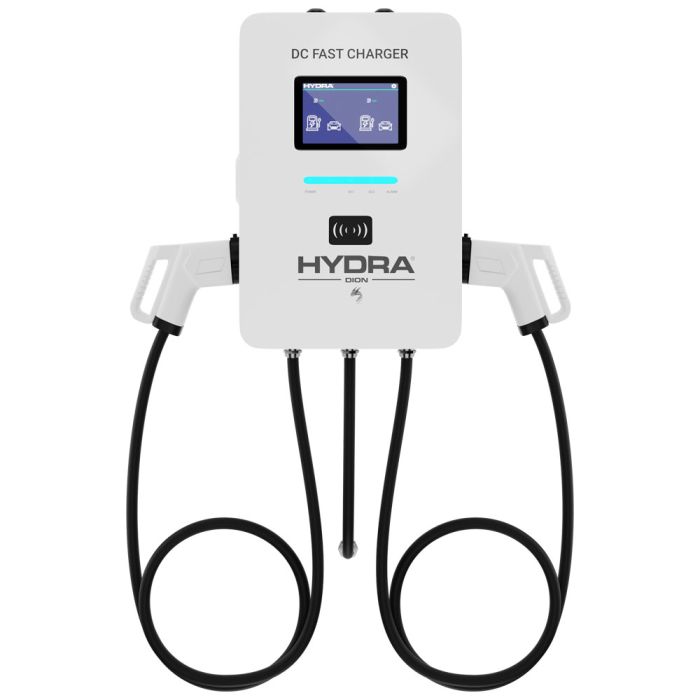

The Hydra Dion CCS2 40kW DC EV Charger – your go-to solution for fast and efficient charging. Featuring a wall-mounted design and two CCS2 Charging Connectors, the Hydra Dion is a powerful and convenient choice of charger for electric vehicle owners.

Unlock Faster Charging:

Upgrade your EV charging experience with the Hydra Dion DC EV charger. It's the perfect solution to bypass onboard AC chargers, achieving a full recharge in under 3 hours for most family EVs. Say goodbye to long charging times and hello to quick, efficient power-ups.

Designed for All Environments:

With its IP55-rated, dust and waterproof design, the Hydra Dion is suitable for both outdoor and garage use. Its sleek and compact profile is ideal for space-restricted installations, and it can be wall-mounted or pedestal-mounted for flexibility.

Secure and User-Friendly:

Control who uses your charger with the built-in RFID card reader, ensuring only authorised users can initiate charging. For added convenience, consider the optional Pensio Contactless Payment Solution to enable hassle-free charging for a broader audience.

Real-Time Data and Management:

The Hydra Dion charger can self-detect your vehicle's specifications and battery charge status, displaying real-time information on the external 5" data screen. Plus, it's OCPP compliant for seamless data transfer and communications. Manage and monitor your charger through the Hydra Cloud or Hydra Nexus platforms in real-time, whether you have a single device or a nationwide network.

Stay in Charge:

Choose between Plug & Charge or RFID Card modes for your preferred charging experience. Rest easy with built-in protections against overvoltage, undervoltage, lightning, and phase loss detection.

Key Features of Hydra Dion Dual 40kW DC EV Charger:

  • 40kW DC Charging: Experience rapid charging for your EV.
  • RFID Access or Plug and Charge: Control access for authorised users.
  • Three-Phase Compatibility: Supports 260-530v AC input for high-performance charging.
  • Hydra Cloud Integration: Easily monitor and manage your charger via the cloud.
  • OCPP 1.6J Compliance: Works seamlessly with various platforms.
  • Durable and Weatherproof: Anti-UV protection and IP55 rating for outdoor or garage use.
  • Connectivity Options: Choose from Ethernet or 3G/4G connectivity.
  • Smart Cooling: Stay cool with smart air cooling technology.
  • Optional PENSIO Payment Solution: Monetize your charger with convenient, app-free payment options.


View All Hydra EV Chargers

View All EV Chargers


If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Hydra Dion Data Sheet
Brand: Hydra
Range: Dion
Product Type: Fast DC EV Charger
Manufacturers Part Number: HD-40-DC-BLK
Rated Power: 40kW
Charging Mode: Plug & charge / RFID Card
Plug Type: CCS2
Cable Length: 4m
LCD: High-definition highlight industrial touch screen
LED: Charging - green / Fault - red
Installation: Wall-mount / Floor-stand
Input voltage: Three-phase AC 380V±15%(3P+N+PE)
Grid frequency: 50Hz/60Hz±1Hz
Input current: 66A
Output current: 100A
Output voltage: DC 150V~1000V
Output current limit protection: Yes
Output short circuit protection: Yes
Power-on input impulse current: ≤ Maximum input current 120%
Input protection: Overvoltage, undervoltage protection, lightning protection, phase loss detection
Input micro-break: With Type A leakage micro-break
Working temperature: -30°C~+50°C
IP protection level: IP55
Cooling method: Smart air cooling
Connection method: Type C
Standard: EN IEC-61851-1:2019; EN61851-23:2014; EN 61851-24:2014; EN IEC 61851-21-2:2021
Button: EPO (Emergency stop detection)
Emergency stop detection: Emergency stop cuts off DC output
DC voltage sampling: DC+, DC- output DC voltage sampling
Insulation detection: DC+ and PE, DC- and PE impedance
Leakage current detection: 30mA leakage protection switch
Protective function: Output short circuit protection, output overvoltage protection, output overcurrent protection, fan failure alarm
Dimensions (HxWxD): 760 x 500 x 280mm
