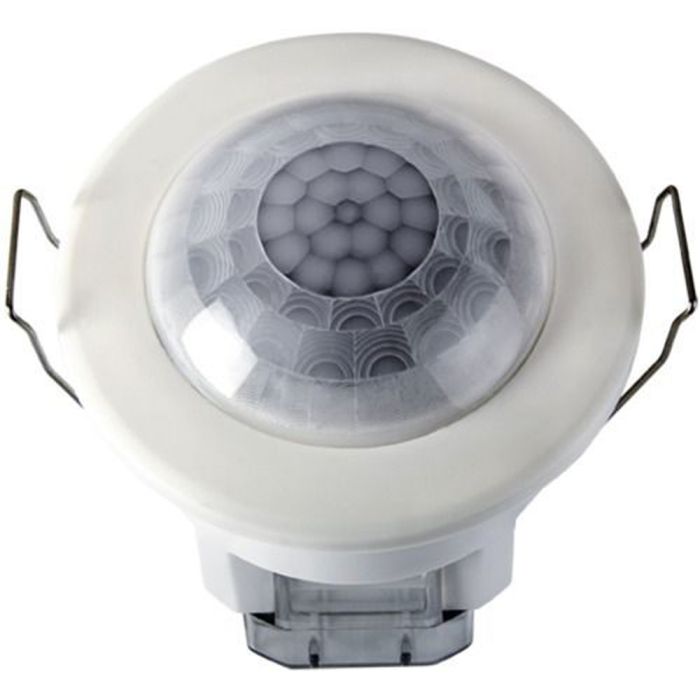

Timeguard PDFM1500 360 Degree Flush Ceiling Mounted PIR Sensor

Switches lights ON when presence is detected and to light level (LUX) settings, deal for energy saving installations in the workplace, corridors, offices, toilets. Four use up to 1500W loading (6A) for incandescent, halogen, fluorescent & inductive lighting or 250W (1A) fan, units can be wired in parallel (not exceeding total load).

Enhanced 360° detection zone for optimum coverage spanning up to 10m for motion and 3m for presence detection at a 3m mounting height.

Features:

• User-friendly adjustment for:Light level - 5 to 1000 LUX, Time ON - 1 to 30 minutes
• IP44 environmental rating (internal use only)
• Requires a 63mm or 64mm diameter installation hole cut out
• Instructions and fixing accessories in box
• Dimensions: 72mm diameter x 68mm
• Up to 420W LED (Max) lighting
• Time ON - 1 to 30 minutes
• Operating Voltage: 230V AC
• 1 or 2 Channel: 1 Channel
• 1st Channel Filament/Halogen Loading (W): 1500
• 1st Channel Fluorescent/Low Energy Loading (W): 1500
• Weatherproof Rating: IP44
• Detection Range (Max) Metres: 10m motion, 3m presence
• Angle of Detection: 360º
• Light On Time After last detection (Adjustable): 30 Minutes
• Permanent ON Facility: Electronic
• Adjustable Light Level (LUX) Control: 5 to 1000 LUX
• LED (Max) lighting: Up to 420W
• Overall Dimensions (mm): Diameter 72, Depth 68
• Timeguard Light Controller PDFM1500 360 Degree Flush Ceiling Mounted PIR Sensor
