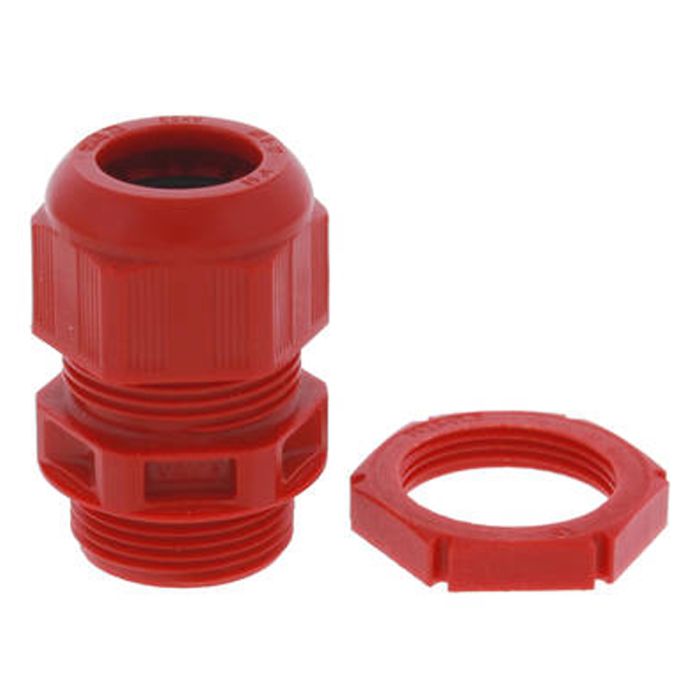

Red Nylon Cable Gland 20mm M20 Each

Red Nylon Cable Gland 20mm IP68

Features:

• Type: Nylon Dome Cable Gland
• Material: Polyamide
• Sealing Gasket Material: EPDM
• Temperature: -40°C to 100°C
• Glow Wire Test: 750°C
• Ingress Protection: IP68 (5 bar 30 min), IP69
• Connection Thread Type: M
• Entry Thread: 20mm
• Cable Fit: 7.5mm-14mm Diameter
• Lead: 1.5mm
• Screw-in Thread Length: 10mm
• Cable Diameter: 14mm
• Key Width: 24mm
• Collar Diameter: 27mm
• Total Length: 36mm-45mm
• Type of Cable Anchorage: A
• Install. Torques Fitting: 4N/m
• Install. Torques Cap Nut: 3N/m
