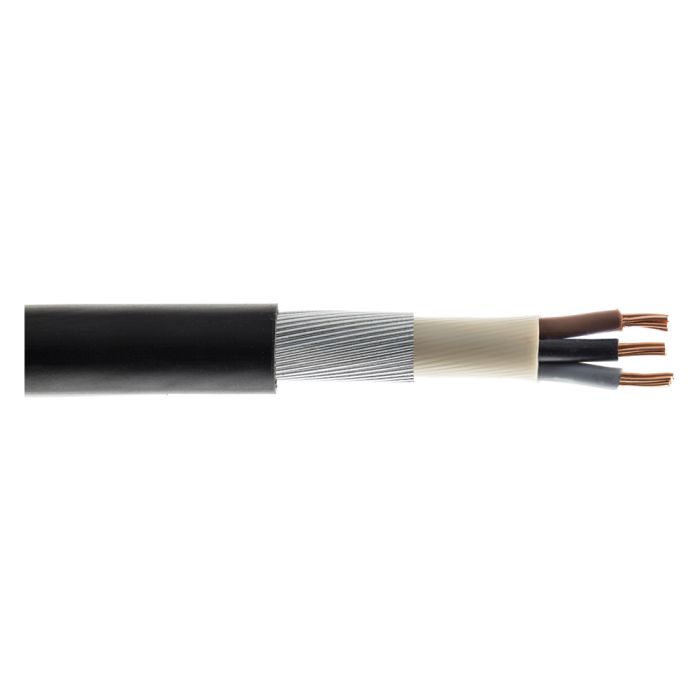

6943XS 2.5mm 3 Core Armoured Cable Stranded XLPE PVC 1M

6943XSH125 3 Core Armoured Cable 2.5mm in 1M Cut Length.

This high quality SWA (steel wire armoured) cable is XLPE insulated providing extra durability and heat protection. Benefitting from a high degree of mechanical protection, this three core armoured cable is ideal for auxiliary control, power networks and other mains supply wiring including underground and external applications.

Features of 6943XSH25 1.5mm 3 Core Armoured Cable Include:

• Cable Type: 6943XSH
• High Degree of Mechanical Protection
• Can be Used Outdoors and Directly Buried
• Number of Cores: 3
• Conductor Diameter: 2.5mm2
• Length: 1M Cut Length
• Insulation: PVC (Polyvinyl Chloride)
• Conductors: Stranded Copper Conductor
• Insulation: XLPE (Extruded Cross-Linked Polyethylene)
• Bedding: PVC (Polyvinyl Chloride)
• Armouring: Galvanised Steel Wire Armour
• Outer Sheath Colour: Black
• Core Colours: Brown, Black & Grey
• Earth: In Armouring
• Current Rating: 28A
• Max Voltage: 600/1000V
• Standards: BS 5467, BS EN 60502-1, BS EN 60332-1-2, BASEC Approved
• Approximate Overall Diameter: 14.1mm
• Cable Clip Required: No.6
• Cable Gland Required: CW/BW20S
