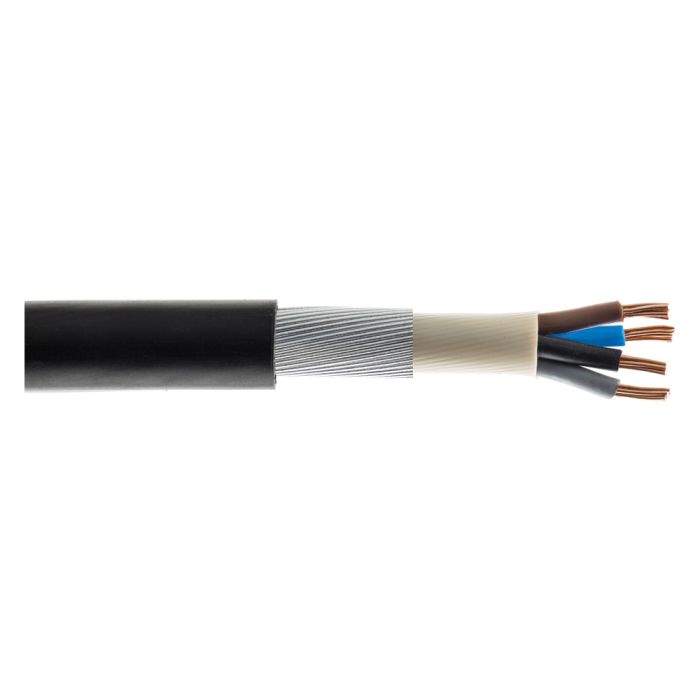

6944LSH LSZH 2.5mm 4 Core Armoured Cable 1M

6944LSH LSZH SWA XLPE 2.5mm 4 Core Armoured Cable in 1M Cut Length. High quality SWA (steel wire armour) cable providing a high degree of mechanical protection, allowing it to be used outdoors and buried. Ideal for Auxiliary control, power networks and other mains supply wiring including underground and external applications.

Features:

• Type: 6944LSH
• Number of Cores: 4
• Conductor Diameter: 2.5mm2
• Length: 1M Cut Length
• Insulation: LSZH (Low Smoke Zero Halogen)
• Conductors: Stranded Copper Conductor
• Insulation: XLPE (Extruded Cross-Linked Polyethylene)
• Bedding: LSZH (Low Smoke Zero Halogen)
• Armouring: Galvanised Steel Wire Armour
• Outer Sheath Colour: Black
• Core Colours: Brown, Black, Blue & Grey
• Earth: In Armouring
• Max Voltage: 600/1000V
• Standards: BS 6724, BS EN 60502-1, BS EN 60754-1, BS EN 60754-2, BS EN 50267-2-1, BS EN 50267-2-2, BS EN 61034-1, BS EN 60332-1-2, BS EN 60332-3-24, BASEC Approved
• Approximate Overall Diameter: 15mm
• Cable Clip Required: No.6
• Cable Gland Required: CW/BW20S
