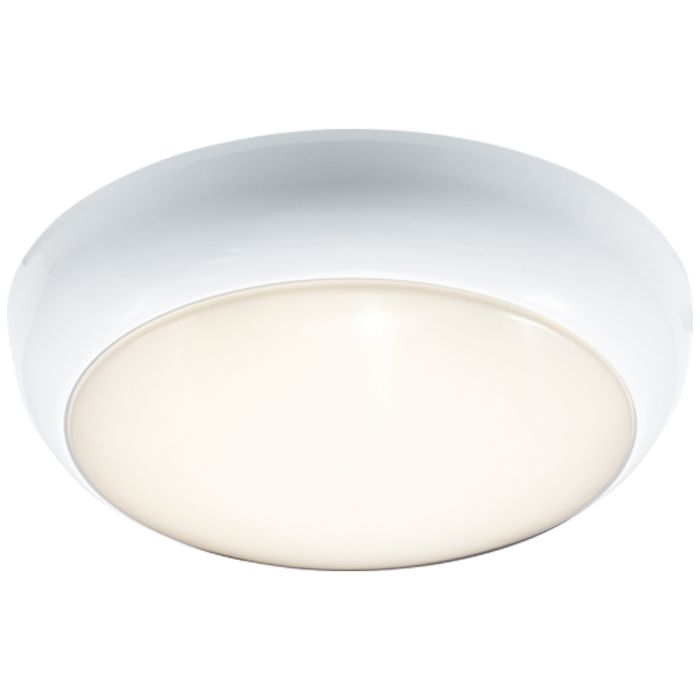

Ansell Disco Microwave Emergency LED Bulkhead CCT ADIS2/1/MWS/M3

The Ansell ADIS2/1/MWS/M3 Disco EVO is a slim, modern Emergency LED bulkhead light designed to meet the diverse needs of residential lighting, commercial lighting and industrial lighting applications, as well as ancillary areas. This versatile polycarbonate bulkhead features an opal diffuser and a sleek white trim ring.

3 Hour Emergency Output Duration & Microwave Sensor

Equipped with a microwave sensor, this LED bulkhead provides automated control, detecting movement and adjusting lighting conditions accordingly. In the case of an emergency, the light's in-built emergency function kicks in, offering you essential visibility for a duration of 3 hours.

Effortless Installation

The gear tray located on the bezel allows the base to be mounted first, with the bezel connected later. Four 20mm conduit entry points ensure a quick and simple setup, making it ideal for both new installations and retrofits.

Instant and Reliable Lighting

Enjoy instant light output and unlimited switching, perfect for high-traffic areas where lights are frequently turned on and off.

Energy-Efficient Performance

With a high efficiency of up to 145lm/W, this energy-efficient LED light delivers powerful illumination while minimising energy costs.

Customisable Lighting Options

The CCT selectable feature allows you to choose between 3000K, 4000K and 6500K colour temperatures, while the power selectable function offers three output options (9W, 12W, 16W) in one luminaire, giving you complete control over your lighting setup.

Enhanced Safety and Durability

With an IP65 rating, this bulkhead is suitable for both internal and external use and can be mounted on ceilings or walls, making it perfect for a wide range of environments.

Long-Lasting Quality

Boasting a 110-degree beam angle, CRI of 80, and L70 54,000h lumen depreciation, this LED bulkhead light ensures consistent, high-quality illumination over time. Backed by a 5-year warranty and CE marked, it’s a reliable choice for any lighting project.

Key Features of Ansell ADIS2/1/MWS/M3 Disco EVO Emergency LED Bulkhead CCT 9W-16W IP65 White:

• LED Bulkhead with CCT and Variable Wattage
• Unlimited Switching and Instant Light Output, Ideal for High Traffic Areas
• 3 Hour Emergency Output Duration
• Microwave Sensor
• Installation: Internal / External, Ceiling / Wall
• CCT: Choose Between 3000K, 4000K and 6500K Colour Temperatures
• Variable Wattage: 9W, 12W, 16W
• Lumens Delivered (4000K): 1200lm (9W), 1800lm (12W), 2300lm (16W)
• Efficiency (4000K): 135lm/W (9W) 145lm/W (12W) 145lm/W (16W)
• Beam Angle: 110°
• CRI: 80
• Input Voltage: 220-240V
• Operating Temperature: -20°C to 40°C
• SDCM: 5
• UGR: 26
• Protection Class: 2
• Lumen Depreciation: L70 54,000h
• IP Rating: IP65
• Diameter: 325mm
• Height: 80mm
• Warranty: 5 years
