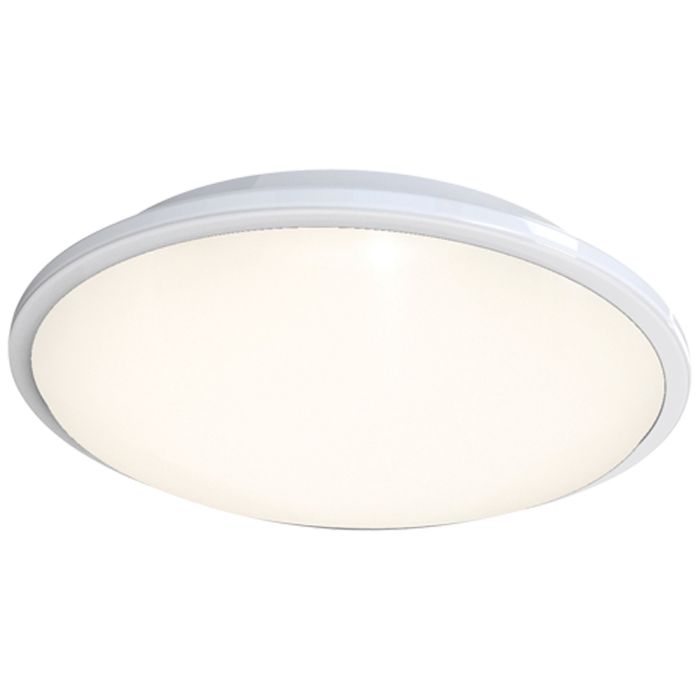

Ansell Eclipse LED Bulkhead CCT 11W-25W AECLED/W/CCT

Ansell Eclipse MultiLED CCT Bulkhead (AECLED/W/CCT): Versatile and Energy-Efficient Lighting

The Ansell Eclipse MultiLED CCT premium LED wall/ceiling bulkhead is engineered for education and commercial applications as well as ancillary areas. With adjustable power and light output options, this fixture delivers unmatched versatility, energy efficiency and modern design—perfect for classrooms, offices, corridors and beyond.

Customisable Colour Temperature

Equipped with an internal CCT selector switch, installers can easily toggle between 3000K (warm white) and 4000K (cool white) to suit any environment.

Adjustable Power and Output

Featuring an integral driver dip-switch, this luminaire offers a wattage range of 11W to 25W, delivering 1200lm to 2800lm (at 4000K) with an impressive efficiency of 108lm/W to 114lm/W.

Energy-Saving Corridor Function

Optional corridor function options reduce energy consumption by dimming lights in unoccupied spaces, making it ideal for high-traffic areas.

Elegant and Robust Design

Built with a spun aluminium base and a dished opal Visiluxe diffuser, this fixture blends durability with a sleek, professional aesthetic.

Superior Light Quality

A 110-degree beam angle ensures wide, even coverage, while a CRI of 80 guarantees vibrant, accurate colours for any setting.

Long-Lasting Performance

With L70 60,000h lumen depreciation, this energy-efficient LED promises years of reliable use, backed by a 5-year warranty.

Versatile Mounting Options

Designed for surface, recessed, or suspended installation on ceilings or walls, it includes BESA box fixing for fast and flexible setup.

Built for Internal Use

With an IP20 rating and Class 1 protection, this luminaire is optimised for internal applications, ensuring safety and performance.

Key Features of Ansell Eclipse MultiLED CCT Bulkhead AECLED/W/CCT:

• MultiLED CCT Bulkhead
• Internal CCT Switch (3000K/4000K)
• Adjustable Wattage: 11W-25W
• Optional Corridor Function
• Dished Opal Visiluxe Diffuser
• Surface, Recessed or Suspended Installation on Ceilings or Walls
• BESA Box Included for Fast Set Up
• Lumens Delivered: 1200lm - 2800lm (4000K)
• Efficiency: 108lm/W - 114lm/W (4000K)
• Beam Angle: 110°
• CRI: 80
• Input Voltage: 220-240V
• Operating Temperature: -10°C to 25°C
• SDCM: 6
• Lumen Depreciation: L70 60,000h
• Class Protection: 1
• Colour/Finish: White
• IP Rating: IP20
• Diameter: 435mm
• Height: 108mm
• Weight: 1.8kg
• Warranty: 5 years
