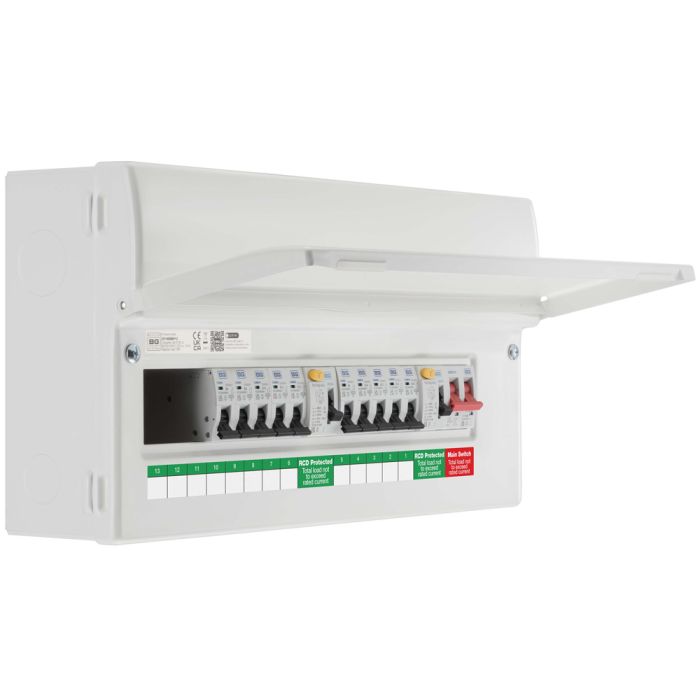

BG Consumer Unit Dual RCD 13 Way Populated CF19D88P13

BG CF19D88P13 13 Way Populated Consumer Unit – Flexible, Reliable and 18th Edition Compliant.

The BG CF19D88P13 13 Way Populated Consumer Unit is a dual RCD consumer unit that provides a flexible solution for the 18th Edition Wiring Regulations (BS7671). Designed for modern electrical installations, this unit comes supplied with a 100A Main Switch and 2 x 80A 30mA Type A RCDs, ensuring compliance and safety straight out of the box. Pre-populated with 10 MCBs (6A x 3, 16A x 2, 32A x 4, 40A x 1), it offers immediate usability while allowing customisation with MCBs, RCBOs, AFDDs, SPDs, and Control Devices to suit specific circuit requirements.

Pre-Installed Components

Includes a 100A Main Switch and 2 x 80A 30mA Type A RCDs, plus 10 MCBs, for quick and efficient setup.

Flexible Circuit Protection

The dual RCD design and compatibility with MCBs, RCBOs, AFDDs, SPDs, and Control Devices allow tailored configurations to meet your project’s needs.

Integrated Spirit Level

Simplifies installation for a professional finish.

High-Integrity as Standard

Ensures enhanced safety and reliability for your electrical system.

Versatile Cable Management

Features large rear knockouts (2 rows), 40mm knockouts on the sides, top, and base, and an optional cable clamp for tidy wiring.

Secure Connections

Equipped with backed-out and retained terminal screws for safe and efficient installation.

Key Features of BG CF19D88P13 13 Way Populated Consumer Unit:

• 13 Way Populated Consumer Unit
• Modules: 19
• Ways: 13
• Protection Options: MCB, RCBO, AFDD, SPD
• Cable Entries: 27 - Top - 3 x 20mm, 2 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 3 x 20mm, 2 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x 32mm 1 x 40mm (sides) 4 x 100 x 50mm (Base)
• Number of Wall Fixing Positions: 5
• Terminal Type: Screw (Combi)
• Terminal Torque: Earth/Neutral Terminals 2Nm, Main Switch 2.5Nm, RCD 2.5Nm
• RCD Sensitivity: 30mA
• RCD Mechanism Type: Thermal/Electromagnetic
• Trip Speed: <0.1s
• Max Load: 100A
• Frequency: 50Hz
• IP Rating: IP2XC
• Height: 229.9mm
• Width: 442.4mm
• Depth: 115.9mm
• Warranty: 10 Years
