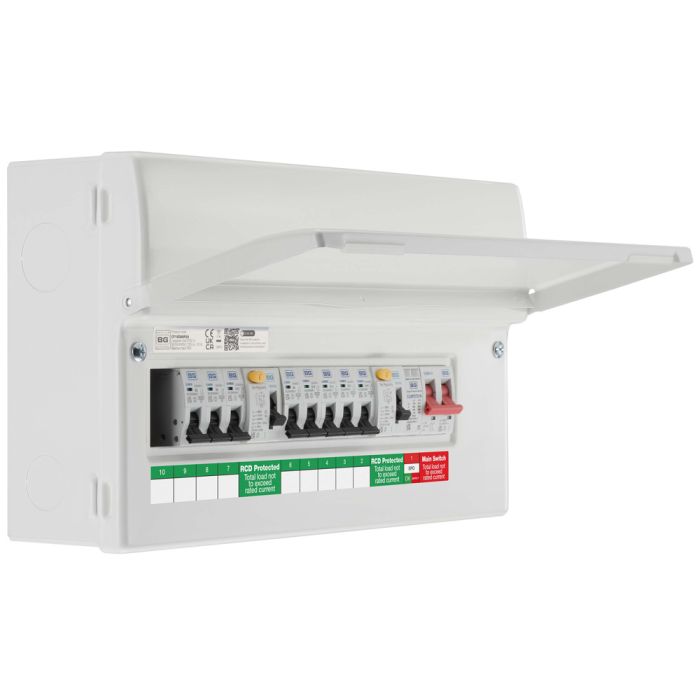

BG 9 Way Dual RCD Consumer Unit High Integrity with SPD Populated

BG 9 Way Dual RCD Consumer Unit High Integrity with SPD Populated

Name: BG 9 Way Dual RCD Consumer Unit High Integrity with SPD Populated
Brand: BG Electrical
SKU: CF16D88PS9
Price: 122.99 GBP
Availability: InStock

Product Code CF16D88PS9

reviews

Available for Delivery only, change to Fast Delivery Service

£102.49

exc VAT

£122.99 : inc VAT

£122.99

inc VAT

£102.49 : exc VAT

BULK SAVINGS!
QTY Unit Price
1-2 £102.49 £122.99
3+ £101.28 £121.54

BG CF16D88PS9 9 Way Populated Consumer Unit with SPD – 18th Edition Compliant Solution

Upgrade your electrical setup with the BG CF16D88PS9 9 Way Populated Consumer Unit with SPD, a dual RCD consumer unit engineered for flexibility, safety and compliance with 18th Edition Wiring Regulations (BS7671). This 16-module, surface-mounted consumer unit comes pre-populated with 8 MCBs, a 100A Main Switch, 2 x 100A 30mA Type A RCDs and a pre-wired Type 2 SPD, making it an ideal choice for both residential and commercial installations.

Pre-Populated Convenience

Includes 8 MCBs (6A x 3, 16A x 1, 32A x 3, 40A x 1), 2 x 100A 30mA Type A RCDs, a 100A Main Switch, and a Type 2 SPD for instant usability.

Flexible Circuit Options

Supports MCBs, RCBOs, AFDDs, SPDs and Control Devices to meet diverse circuit requirements.

Integrated Spirit Level

Ensures accurate and professional installation.

Robust Cable Management

Features 24 knockout cable entries across the top, bottom, sides and base, including large rear knockouts (2 rows) and 40mm knockouts for easy wiring.

User-Friendly Design

Comes with captive and backed-out terminal screws for secure, efficient connections, plus an optional cable clamp for added organisation.

Key Features of BG CF16D88PS9 9 Way Populated Consumer Unit with SPD:

9 Way Populated Consumer Unit
Modules: 16
Ways: 9
Protection Options: MCB, RCBO, AFDD, SPD
Cable Entries: 24 knockouts (Top: 2x20mm, 1x25mm, 4x32mm, 1x40mm; Bottom: 2x20mm, 1x25mm, 3x32mm, 2x40mm; Sides: 1x32mm, 1x40mm each; Base: 4x100x50mm)
Terminal Torque: Earth/Neutral 2Nm, Main Switch 2.5Nm, RCD 2.5Nm, MCB 2Nm, SPD 1.2Nm, L/N 3Nm, PE
RCD Sensitivity: 30mA
RCD Rated Current: 80A
RCD Mechanism: Thermal/Electromagnetic
Main Switch Rated Current: 100A
Trip Speed: <0.1s
Max Load: 100A
Frequency: 50Hz
Mounting Type: Surface
IP Rating: IP2XC
Height: 229.9mm
Width: 388.4mm
Depth: 115.9mm
Warranty: 10 Years

View BG RCBO's

View BG Consumer Units

Need help? Take advantage of our Price Promise or place a large order by contacting our team:

Call: 0203 994 5470
Email: sales@electricpoint.com
Contact Form

Product Downloads	BG Dual RCD Consumer Unit SPD Populated Datasheet

Product Code	CF16D88PS9
Manufacturer	BG Electrical
Product Type	9 Way Populated Consumer Unit with 100A Main Switch and Type 2 SPD
Ways	9
Modules	16
Number of Cable Entries	24
Captive Terminal Screws	Yes
Backed-out Terminal Screws	Yes
Cable Entry Type	Knockout
Details per face (Size/number)	Top - 2 x 20mm, 1 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 2 x 20mm, 1 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x 32mm 1 x 40mm (sides) 4 x 100 x 50mm (Base)
Number Of Wall Fixing Positions	5
Main Switch Included	100A Main Switch
Type 2 SPD Included	Yes
Integrated Spirit Level	Yes
Optional Cable Clamp Included	Yes
40mm Knockouts Sides, Top and Base	Yes
Backed Out and Retained Terminal Screws	Yes
Installation	Surface Mounted
18th Edition	Yes
IP rating	IP2XC
Number of Phases	1
Rated Operational Voltage	230V
Frequency	50Hz
Rated and Insulation Voltage (Ui)	500V AC
Type of Supply Voltage	AC
Rated Impulse Withstand Voltage	4kV
Rated Conditional Short Circuit Current	16kA
Pollution Degree	2
Main Switch Terminal Capacity	35mm²
Main Switch Terminal Torque	2.5Nm
Height	229.9mm
Width	388.4mm
Depth	115.9mm
Standards	Consumer Unit-BS/EN 61439 Main Switch - EN/IEC 60947-3 RCD IEC/EN 61008-01 SPD - IEC 61643-1 EN 61643 Type 2 MCB IEC/EN 60898-1
Warranty	10 Years
