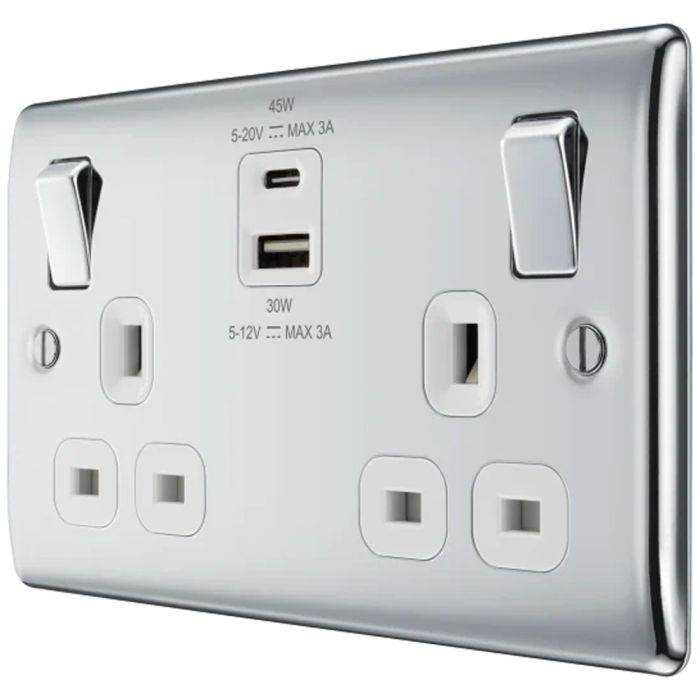

BG Nexus Metal 2 Gang Switched Socket USB A C 45W Polished Chrome

BG Nexus Metal 2 Gang Switched Socket USB A C 45W Polished Chrome

Product Code NPC22UAC45W

reviews

Available for Delivery only, change to Fast Delivery Service

£23.94

exc VAT

£28.73 : inc VAT

£28.73

inc VAT

£23.94 : exc VAT

BULK SAVINGS!
QTY Unit Price
1-2 £23.94 £28.73
3+ £23.78 £28.54

BG Nexus Metal Polished Chrome 13A Double Switched Socket with USB A + C – Premium High-Power Charging Solution

Elevate your interiors with the BG NPC22UAC45W Double Switched Socket, a luxury, high-performance socket featuring integrated 45W USB-A and USB-C ports with PD and QC fast charging protocols, delivering 50% charge in 30 minutes and 70% faster charging than standard 5V outlets. Crafted with a premium polished chrome finish, white inserts and a moisture control gasket, it includes smart charging, twin earth and a 25mm minimum mounting depth for easy retrofit installations.

13A 240V Double Switched Socket: Provides reliable power for two standard 3-pin UK plugs with single-pole switches.

45W USB-A and USB-C Ports: Supports PD and QC fast charging for iOS and Android devices, ideal for smartphones, tablets, and laptops.

Smart Charging Technology: Features AutoDetect to adjust charging patterns, standby mode for full charge and overload protection for safe, efficient charging.

Premium Polished Chrome Finish: Sleek, slim metal profile with white inserts and softly rounded edges for a luxury aesthetic.

Moisture Control Gasket: Prevents tarnishing from new plaster, ensuring long-lasting elegance in new builds and renovations.

Twin Earth Terminals: Supports high integrity circuits for enhanced safety in BS7671:2008 compliant installations.

25mm Minimum Mounting Depth: Ideal for retrofit installations with 120.6mm fixing centres.

Installer-Friendly Design: Angled, colour-coded terminals with captive screws ensure quick, secure wiring (supports 3x2.5mm², 3x4.0mm², 2x6.0mm²).

Standards Compliance: Meets BS 1363-2:2016+A1:2018, BS EN 62368-1:2014, EN55032, RoHS, and WEEE directives for industry-standard reliability.

10 Year Guarantee: Ensures confidence in long-term performance.

Key Features of BG Nexus Metal Polished Chrome 13A Double Switched Socket with USB A + C:

Double Switched 13A Socket with USB A and C Outlets
PD and QC Fast Charging Delivers 50% Charge in 30 Minutes, 70% Faster than Standard 5V Outlets
Twin Earth Terminals
Angled, Colour Coded Terminals
Captive Screws
Rating: 13A
USB C Output: 22W
USB A Output: 22W
Switch Type: Single Pole
Minimum Mounting Box Depth: 25mm
Fixing Centres: 120.6mm
Height: 86mm
Width: 147mm
Depth: 32mm
Warranty: 10 Years

View All Polished Chrome Sockets

View All Plug Sockets & Switches

View All Wiring Accessories

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads	NPC22UAC45W Data Sheet

Specification	Details
Product Name	NPC22UAC45W
Standard(s)	BS 1363-2:2016+A1:2018, BS EN 62368-1:2014, EN55032, EN 62368-1:2020+A11:2020, EN 61000-6-1:2019, EN 61000-6-3:2021
Rating	13 Amp 240V ~
Contact Gap	3.0mm minimum
Switch Type	Single Pole
Terminal Capacity - L & N	3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²
RoHS Directive	Yes
WEEE Directive	Yes
Mounting Box Depth (Min)	25mm
Fixing Centres	120.6mm
Input Requirement	200-240Vac ±10%
Input Frequency Range	50/60Hz
Input Current	1A Max
Turn On Delay Time	≤1S
Input Current Protection	2A Fuse
USB-C Output	21.6W max (5V/3A; 9V/2.4A; 12V/1.5A; 15V/1.4A; 20V/1A)
USB-C Charge Protocols	PD3.0; QC3.0; Apple2.4A; Samsung 2.0; Samsung AFC; Huawei FCP; BC1.2
USB-A Output	21.6W max (5V/3A; 9V/2.4A; 12V/1.5A)
USB-A Charge Protocols	QC3.0; Apple2.4A; Samsung 2.0; Samsung AFC; Huawei FCP; BC1.2
Output When Both USB-C and USB-A Plugged In	USB-C: 12W (5V/2.4A); USB-A: 12W (5V/2.4A)
DC Output Over Current Protection	Recover automatically
DC Output Over Voltage Protection	Recover automatically
Reset After Shutdown	Yes
Over-Temperature Protection	Yes
CE ASTA	BS 1363-2:2016+A1:2018
CE EMC	EN 62368-1:2020+A11:2020, EN 61000-6-1:2019, EN 61000-6-3:2021, EN55032
EMI	<5mA/4000V/60S
HI-POT Test	<5mA/4000V/60S
Material	Premium metal with polished chrome finish and white inserts
Moisture Control Gasket	Yes, prevents tarnishing from new plaster
Twin Earth	Yes, for high integrity circuits (BS 7671:2008)
Smart USB Features	AutoDetect, standby mode, overload protection
Installation Features	Angled, colour-coded terminals, captive screws
