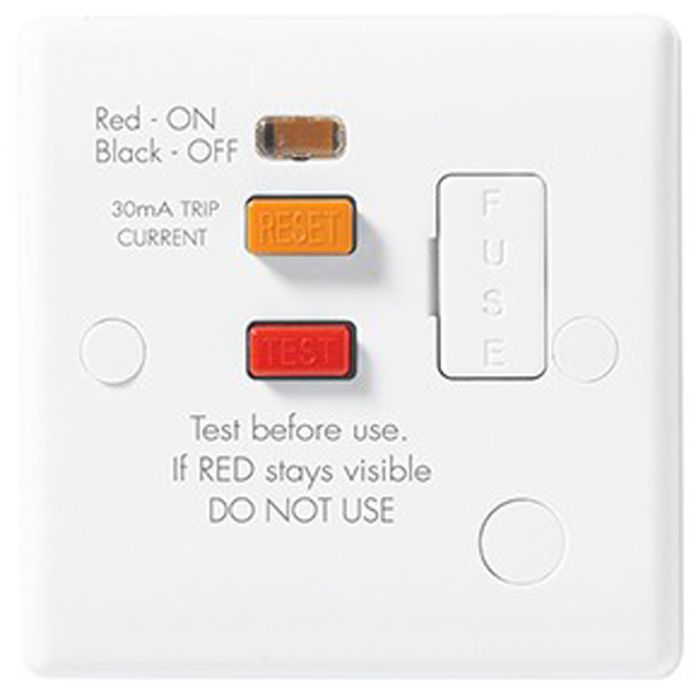

BG Electrical 855ARCD-01 13A Type A RCD Fused White

BG Nexus 855ARCD-01 13A Fused Connection Unit with RCD Protection – Safe, Hygienic Power

Enhance your electrical setup with the BG Nexus 855ARCD-01 13A Fused Connection Unit with Type A RCD Protection, a premium white moulded fused spur designed for safe electrical solutions in homes and commercial spaces.

Featuring an integrated Type A RCD with 30mA sensitivity and <40ms trip speed, this unswitched fused connection unit ensures rapid protection against electrical faults, preventing shocks and enhancing safety. Its latching mechanism retains settings during power outages, making it ideal for critical appliances like fridge freezers and boilers.

Crafted from high-grade thermoset urea, this anti-microbial fused spur inhibits 99% of bacterial growth (e.g., MRSA, E-Coli, Salmonella, Klebsiella Pneumonia), perfect for hygienic electrical fittings in kitchens, bathrooms and healthcare settings.

Backed by a 30-year warranty, the BG Nexus 855ARCD-01 combines safety, durability and a sleek white moulded design for modern power solutions.

Enhanced Safety: Type A RCD protection with 30mA sensitivity and <40ms trip speed cuts power during earth faults.

Latching Mechanism: Passive RCD retains closed contacts after power interruptions, ideal for appliance protection fused spurs like fridges, with no need to reset.

Anti-Microbial Protection: Certified to inhibit 99% bacterial growth on touch surfaces, making it perfect for hygienic fused connection units in high-traffic areas.

Easy Installation: Colour-coded terminals with captive screws and a 10mm spacer for shallow boxes (minimum 35mm depth) ensure quick install.

High Integrity Circuits: Twin earth terminals comply with BS 7671:2008, supporting high integrity electrical connections for robust installations.

Sleek Design: White moulded round edge with screw cover caps offers a modern, dust-resistant look, blending seamlessly with contemporary electrical fittings.

Robust Performance: Supports a 3120W max load at 240V, with terminal capacity for 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², or 1 x 4.0mm², ideal for versatile fused spurs.

Eco-Friendly: Complies with RoHS and WEEE Directives, promoting sustainable electrical solutions with minimal environmental impact.

Features of BG Nexus 855ARCD-01 Fused Connection Unit:

• Unswitched 13A Fused Connection Unit with Type A RCD Protection
• Flex Outlet
• Anti-Microbial Coating Protects Against Diseases such as MRSA, E-Coli, Salmonella and Klebsiella Pneumonia
• Easy Install
• Integrated RCD
• No Need to Reset After Power Interruption
• Captive Screws
• Screw Covers
• Twin Earth Fitted as Standard
• Minimum Mounting Box Depth: 35mm
• Terminal Capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
• RCD Mechanism Type: Latching
• Operating Voltage: 240V
• Height: 86.7mm
• Width: 86.7mm
• Depth: 37.9mm
• Warranty: 30 Years
