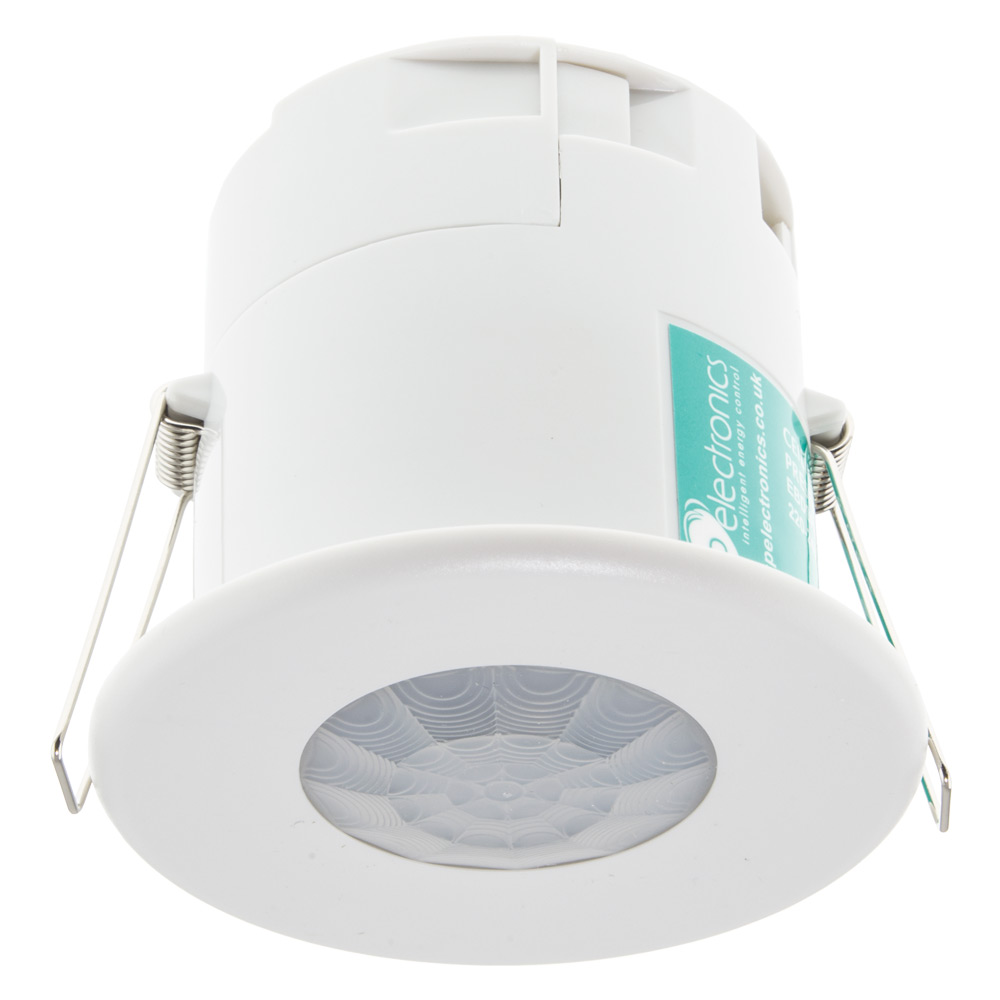

CP Electronics 8A PIR Detector Ceiling Mounted 1900W White

CP Electronics EBDSPIR 8A PIR detector detector ceiling mounted 1900W white.

Features:

• Type of detector: Passive infrared sensor
• Application: Suspended ceiling, corridors, offices, toilets
• Mounting: Flush 64mm cut out, or surface with DBB
• Detection zone and range: 360 degree, 7m at 2.8m high
• Maximum halogen and incandescent load: 8 Amp
• Maximum fluorescent load: 6 Amp
• Maximum compact fluorescent load: 3 Amp
• Maximum LED load: 3 Amp
• Maximum fan load: 3 Amp
• Voltage: 230 Volt AC 50Hz
• Protection rating: IP40
• Photocell: Lux sensing
• Time lag range: 10 seconds to 30 minutes
• Dimensions: Diameter 76mm, Height 65mm
• Colour: White
• Standards: EMC-2014/30/EU, LVD-2014/35/EU
• Warranty: 5 Years
