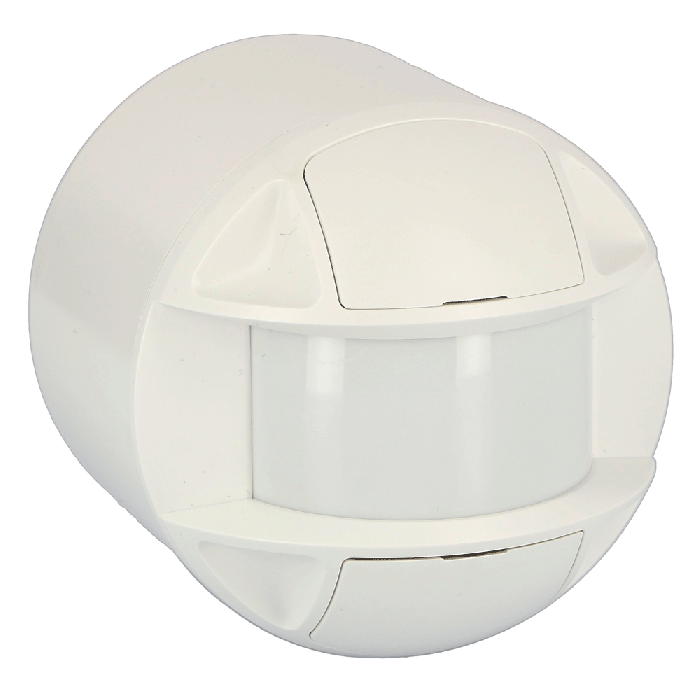

CP Electronics Green-i Corridor Sensor Surface Mounted

CP Electronics Green-i GENBSM-W — Corridor Surface-Mounted Narrow Beam PIR Presence Detector for On/Off Lighting Control.

The CP Electronics Green-i GENBSM-W is a specialist corridor PIR presence detector designed for long, narrow spaces where standard 360° sensors are inefficient. Featuring a focused narrow-beam detection pattern with up to 24m frontal coverage, it provides accurate, reliable lighting control in corridors, walkways and access routes.

Combining automatic presence detection with integrated daylight sensing, the GENBSM-W ensures lights operate only when required. Simple surface mounting and front-accessible adjustments make it a practical, installer-friendly solution for commercial buildings, education facilities and public spaces.

Optimised For Corridor Applications

The narrow long-range detection pattern is specifically engineered for corridors, reducing false triggering from adjacent areas while maintaining consistent coverage along the length of the space. This improves lighting reliability and energy efficiency.

Automatic, Energy-Saving Operation

Auto on / auto off functionality switches lighting based on occupancy and ambient light levels. Adjustable lux and time delay settings allow the sensor to be tuned precisely to the environment, helping to minimise wasted energy and lamp wear.

Simple Installation And Commissioning

Surface ceiling mounting makes the GENBSM-W ideal for retrofit projects. Settings can be adjusted via on-board potentiometers or the optional GE-HS infrared handset, reducing commissioning time and simplifying future adjustments.

Key Features of the CP Electronics Green-i GENBSM-W Include:

• Narrow Beam PIR Presence Detection Optimised For Long Corridors
• Automatic On/Off Lighting Control With Integrated Daylight Sensing
• Long Detection Range Up To 24m For Reliable Corridor Coverage
• Compatible With All Lamp Types Including LED And C-Load Circuits
• Adjustable Time Delay And Lux Level Via Potentiometer Or IR Handset
• Surface Ceiling Mounted Design Ideal For Retrofit Installations
• Maximum Switching Load 2000W Or 350W LED
• Zero-Crossing Switching Improves Load Handling And Lamp Life
• Push-In Terminals For Fast, Secure Wiring
• Compact White Housing With Discreet Appearance
