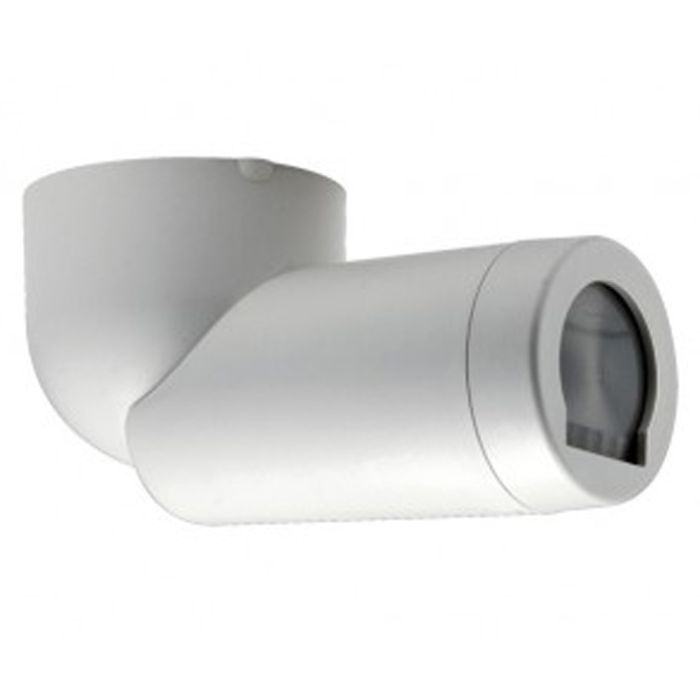

Danlers CEDR6PLR Directional PIR Sensor Ceiling

Danlers CEDR6PLR Ceiling Directional PIR Sensor, designed for use with Klik-AX socket. Danler Ceiling Directional PIR sensor can be rotated 360 degrees and angled between horizontal and 45 degrees down. Mountable onto a BESA box. Danler's PIR occupancy detector integrates a passive infrared quad sensor to monitor movement and a photocell, which constantly samples the ambient LUX level and switches off the controlled load, even if the room is occupied. Danlers designed the PIR occupancy switch with adjustable settings to suit your lighting requirements, including an adjustable barrier. Ideal for corridors, stairwells, offices and toilets.

Features of Danlers CEDR6PLR

• Ideal for corridors and storage aisles
• Designed for use with Klik-AX socket
• Danlers PIR socket can be mounted onto a BESA box
• Incorporates a PIR quad sensor
• Includes photocell technology to monitor light level
• Internal time adjuster (10secs to 40mins)
• Detection range: 5M at 2.4M high
• Adjustable lux: 30 to 1000 lux and inactive
• Maximum resistive load: Up to 6A (1500W)
• Maximum fluorescent load: Up to 6A (1500W)
• Maximum LED loads: Up to 2A (500W)
• Maximum 3A (750W) electronic/wire wound transformers
• Material: Polycarbonate
• Voltage: 230V
• Height: 120mm
• Width: 60mm
• Swivel base: 74mm x 64mm
• Standards: BS EN 60669-2-1 and BS EN 55015
• Warranty: 3 years
