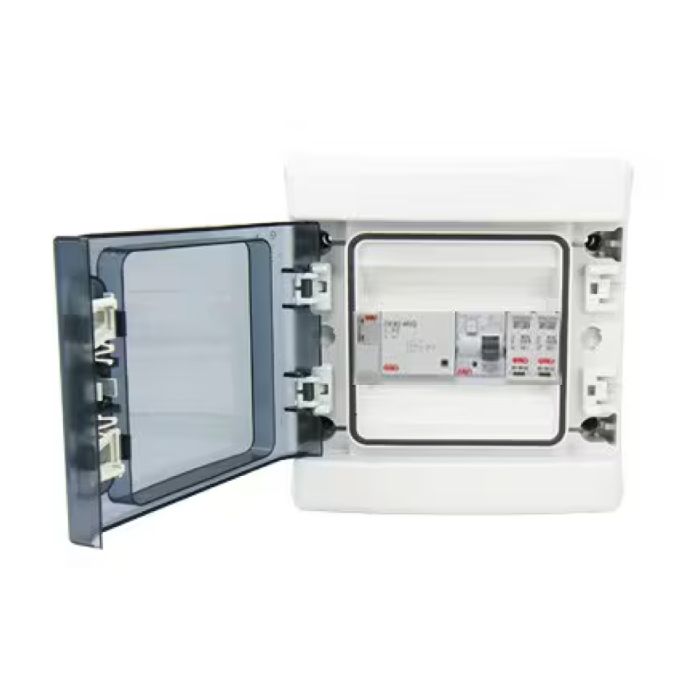

Garo PME Fault Detection EV Consumer Unit with SPD and 40A RCBO IP65

The Garo EV Consumer Unit 4 Way 40A PME + Surge Protection Device is a compact and robust solution designed for safe, efficient, and compliant EV charging installations. Engineered to meet the stringent EN 61439-3 standard, this consumer unit is ideal for residential or light commercial use, delivering reliable protection and intelligent fault detection in a user-friendly format. Its core features include a 40A RCBO Type A as the main protective device, ensuring precise current handling and safety in sensitive circuits.

This unit is built to support modern electrical demands, with a rated current of 40A, voltage range of 230V AC, and frequency compatibility of 50/60 Hz. Operating safely between 213V and 253V for up to 4 seconds, it integrates a PME fault detection mechanism and surge protection device—essential for maintaining uninterrupted performance and equipment longevity. With 8 total ways and the capacity for 100A maximum backup protection, it ensures high fault resilience, boasting a conditional short circuit rating of 16kA rms at 250V.

Key features of Garo EV Consumer Unit 4 Way 40A PME + Surge Protection Device GCS8EV40PME:

• Rated current: 40A
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Rated Conditional Short Circuit (Icc): Annex ZB: 16kA rms at 250V
• Main Device: 2 RCBO Type A
• Additional Devices: PME Fault detection & surge
• Operation: 213V - 253V
• IP Rating: IP65
• Total number of ways: 8 ways
• Height: 231mm
• Width: 238mm
• Depth: 118mm
• Terminals: 25mm
• Maximum Backup Protection: 100A
• Standards: EN 61439-3, compliant with BS7671
• Warranty (Mechanical components): 5 years
• Warranty (Electronic components): 2 years
