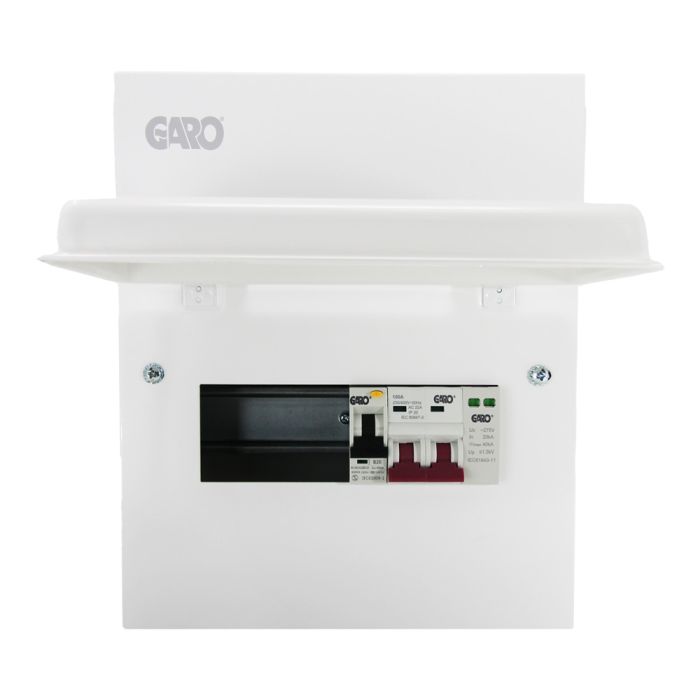

Garo 5 Way Solar Consumer Unit with SPD and Main Switch and 16A RCBO

The Garo Solar Consumer Unit 8 Way 100A SPD 16A RCBO is a robust and versatile distribution solution tailored for residential and light commercial solar installations. Designed to deliver efficient power management with enhanced safety, this consumer unit operates at a rated current of 40A and a voltage of 230V AC, supported by a dependable frequency range of 50/60 Hz. The inclusion of a 100A Double Pole (DP) Isolator as the main device, along with a 16A RCBO, ensures reliable circuit protection and fault isolation for seamless performance.

Engineered for high performance and peace of mind, the unit boasts a conditional short circuit rating of 16kA rms at 250V (Annex ZB), along with Type 2 Surge Protection Device (SPD) to shield sensitive components from voltage spikes. With a total of 8 ways and 4 free for future expansion, this IP40-rated consumer unit complies with EN 61439-3 standards and is fully aligned with BS 7671 regulations.

Key features of Garo Solar Consumer Unit 8 Way 100A SPD 16A RCBO GS8SOL:

• Rated current: 16A
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Rated Conditional Short Circuit (Icc): Annex ZB: 16kA rms at 250V
• Main Device: 100A DP Isolator
• Additional Devices: 16A RCBO
• Surge ProtectioN: SPD Type 2
• IP Rating: IP40
• Total number of ways: 8 ways
• Total number of free ways: 4
• Height: 235mm
• Width: 197mm
• Depth: 110mm
• Terminals: 35mm
• Maximum backup protection: 100A
• Standard: EN 61439-3, compliant with BS 7671
