Hager AFDD MCB 6A 30mA ARM906U

Product Code ARM906U

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£77.89

exc VAT

£93.47 : inc VAT

£93.47

inc VAT

£77.89 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £77.89 £93.47
  • 3+ £76.98 £92.38

Qty:

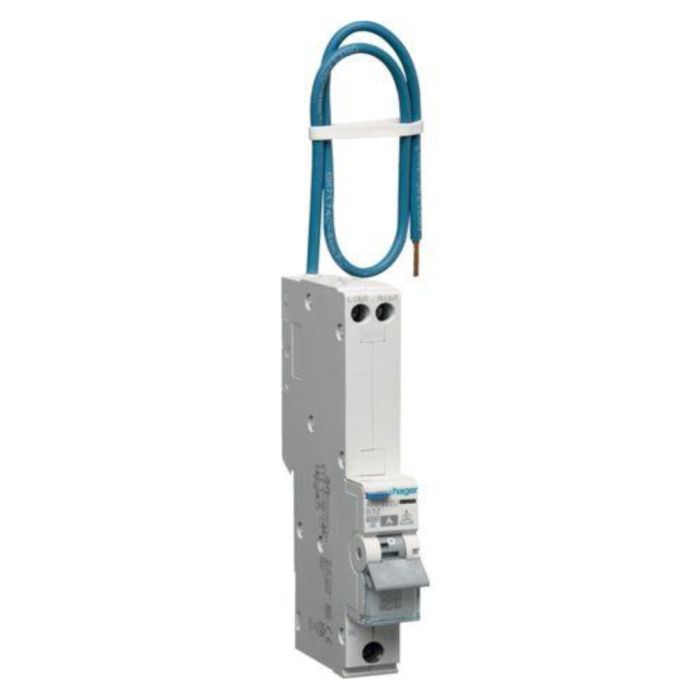

Hager ARM906U 6A 30mA single module 1P+N AFDD MCB (arc fault detection miniature circuit breaker). Microprocessors detect changes in electrical waveform caused by incorrect wiring, loose electrical connections, rodent bites or defective plugs and cutting the power to an affected circuit providing protection to AC circuits.

AFDD MCB’s designed to retrofit old dual RCD consumer units, where RCD protection is already available. New consumer unit installations typically use a main switch consumer unit and are then fitted with AFDD RCBO’s.

From March 2022 as per BS7671 18th Edition AMD2, AFDDs are mandatory in Higher Risk Residential Buildings, Houses in Multiple Occupation, Purpose built accommodations for students and Care homes and must be fitted at the origin of any single-phase AC final circuits supplying socket-outlets with a rated current not exceeding 32A.

The purpose of AFDD’s is to reduce the estimated 20,000 electrical fires that occur each year in the UK and it is highly recommended for any property to have one installed for the additional protection.

Features of Hager ARM906U AFDD:

  • AFDD MCB (Arc Fault Detection Device)
  • Poles: Single Pole and Neutral (1P+N)
  • Rating current: 6 Amp
  • Trip current: 30mA
  • Single Module
  • Type: B curve
  • Breaking capacity 6kA
  • Mounting: DIN rail type O (symmetrical)
  • Number of poles: 2 - Single pole and neutral
  • IP Rating: IP20
  • Depth: 70mm
  • Height: 125mm
  • Width: 17.5mm
  • Voltage: 230V
  • Standards: EN 62606, EN 60898-1



View all Hager Products

View all Consumer Units

View all Circuit Protection

We're committed to providing great service for our customers, please view our Reviews page to see up to date feedback from verified Electricpoint customers. All of our reviews are provided directly from Feefo's review website to ensure unbiased, impartial reviews.

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, please give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Brand Hager
Model Number ARM906U
Product Type AFDD MCB (Arc Fault Detection Device)
Neutral Position Right
Number of Poles 2P
Type of Pole 1P+N
Fixing Mode DIN Rail Type O (Symmetrical)
Tripping Curve B
Rated Operational Voltage Ue 230V
Type of Supply Voltage AC
Rated Insulation Voltage 400V
Max Operating Voltage 253V
Rated Impulse Withstand Voltage 4kV
Rated service breaking capacity Ics AC according to IEC60898-1 6kA
Rated short circuit breaking capacity Icn under 230V AC according to IEC60898-1 6kA
Rating Current 30°C 6A
Trip Current 30mA
Total Power Loss Under IN 2.59W
Electric endurance in the number of cycles 2000
Number of mechanical operations 8000
IP Rating IP20
Operating Temperature -25°C - 70°C
Depth of Installed product 70mm
Height of Installed product 125mm
Width of Installed product 17.5mm
Standards EN 62606, EN 60898-1, ISO 14001
European directive WEEE Concerned
