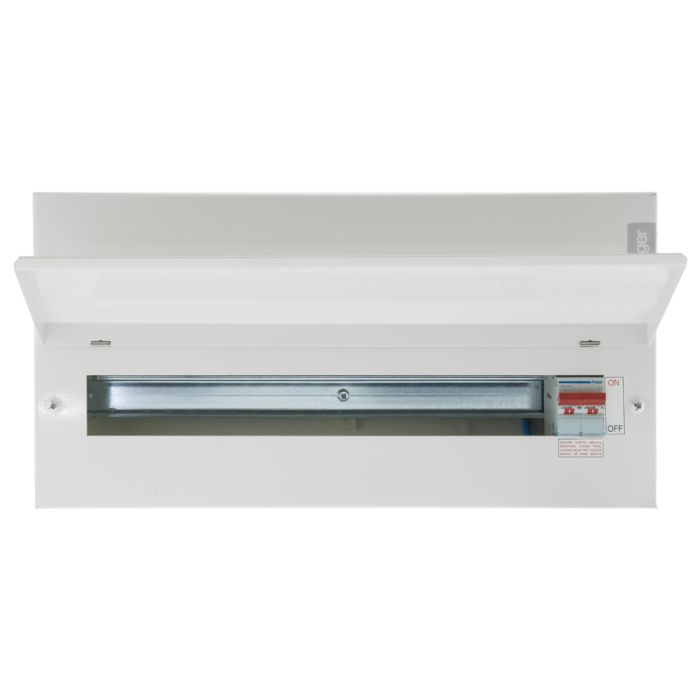

Hager 20 Way RCBO Consumer Unit with Main Switch VML120RK #

Hager VML120RK — 20 Way 100A Design 10 Consumer Unit with round knockouts, built for larger rewires and refurbishments that need extra circuit capacity and fast cable entry.

Extra Circuit Capacity Without Losing Retrofit Speed

With 20 usable ways, the VML120RK suits larger domestic properties or light commercial jobs where a 6 or 10 way board won't cover the circuit count. Its top, bottom and rear knockouts are round, so cable entry points can be punched out on site rather than following a pre-scored pattern — useful when a bigger board also means a less predictable containment route. It takes Hager's MTN-range MCBs and RCBOs, removable with the busbar still in place, and is fully compliant with BS 7671 18th Edition Amendment 3.

20 Ways for Enhanced Usability

The 100A double-pole switch disconnector incomer isolates the whole installation from one point, with a full set of earth and neutral terminals keeping a busier 20-way board properly organised. The steel enclosure is IP2XC rated and built to BS EN 61439-3 (including Annex ZB), giving it the same long-term durability as the rest of the Design 10 range at a larger scale.

Looking for the standard-knockout version instead? See the Hager VML120 — same 20 way, 100A spec, without the round knockout cutouts.

Key Features of the Hager VML120RK Consumer Unit Include:

• Round Knockouts On Top, Bottom & Rear For Faster Cable Entry On Rewires & Retrofits
• 20 Usable Ways For Larger Domestic Or Light Commercial Installations
• 100A Double Pole Switch Disconnector Incomer For Single-Point Isolation
• Accepts Hager MTN Range Quick-Release MCBs & RCBOs, Removable With Busbar Still In Place
• Full Metal DIN Rail Keeps Devices Square & Secure
• Supplied With Earth & Neutral Terminals, Marking Labels, Busbar & Instructions
• 18th Edition Compliant To BS 7671 Amendment 3
• IP2XC Rated Steel Enclosure
• Height: 245mm
• Width: 476mm
• Depth: 100mm
