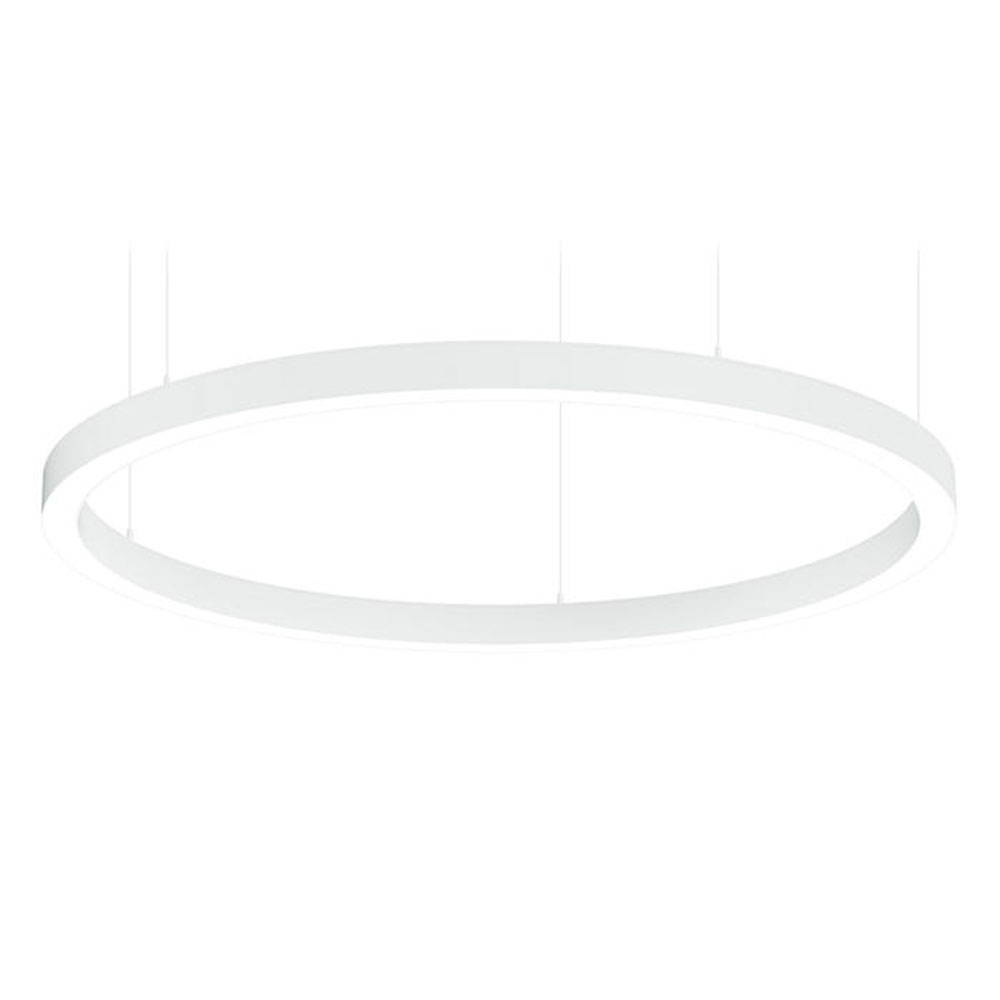

JCC Ring of Light LED Linear 5ft 64/77/95W CCT White

The JCC Ring of Light LED Linear 5ft 64/77/95W CCT White is a 1500mm suspended circular luminaire designed to make a statement in offices, receptions and retail environments. Its large diameter and slim white profile create a bold halo of light that works perfectly as a centrepiece above counters, breakout areas and atriums, or alongside JCC’s Line of Light linear range in bigger schemes. An adjustable suspension kit is supplied so the fitting can be dropped up to 5m from the ceiling, making it suitable for both standard and high-ceilinged spaces.

Selectable outputs for large, flexible spaces

To keep specification simple while giving you control on site, this Ring of Light offers three selectable wattages – 64W, 77W and 95W – delivering powerful outputs of 8050, 9550 and 11,650 lumens at efficacies up to 126 lm/W. A 3CCT switch lets you choose between 3000K, 4000K and 5700K, so you can dial in warm, neutral or cool white to suit front-of-house areas, open-plan offices or bright retail floors without changing the fitting. A 70° beam angle and CRI 80 provide wide, comfortable illumination with natural colour rendering across displays and working planes.

Installer-friendly design and long service life

The Ring of Light 5ft uses a constant-current Mingfirst driver on 220–240V AC with power factor 0.9 and low harmonic distortion, helping to ensure efficient, stable performance. A robust aluminium housing with polycarbonate outer diffuser and Shaanxi 2835 LEDs is rated for a 50,000-hour LED life (L70 in optimum conditions), keeping maintenance visits to a minimum in busy commercial settings. Designed for use in commercial and retail applications outside bathroom zone 2 and backed by a 5-year JCC warranty (terms apply), it provides an eye-catching yet practical solution for large interior spaces.

Features of the JCC Ring of Light LED Linear 5ft 64/77/95W CCT White:

• 1500mm suspended circular “Ring of Light” luminaire in white finish
• Adjustable wire suspension kit included – up to 5m drop from ceiling
• Designed to complement JCC Line of Light linear systems in commercial and retail interiors
• Selectable wattages: 64W / 77W / 95W
• Actual lumen outputs: 8050 / 9550 / 11,650lm
• High efficacy up to 126 lumens per circuit watt
• 3CCT selectable: 3000K (warm), 4000K (neutral) and 5700K (cool)
• 70° beam angle for wide, even illumination
• CRI 80 (Ra 80) for natural, accurate colour rendering
• Constant-current driver, 28–38V DC output, secondary running currents 850 / 1050 / 1300mA ×2
• Mains input 220–240V AC, 50/60Hz; primary running current 0.32A; inrush 16A @ 242µs
• Power factor 0.9 with THD <20% for efficient, stable operation
• Aluminium primary housing with polycarbonate diffuser for a robust, lightweight build
• Recommended for commercial and retail applications outside bathroom zone 2
• LED lifetime: 50,000 hours (L70 under optimum conditions)
• Height: 75mm
• Diameter: 1500mm
• 5-year warranty (terms and conditions apply) for added peace of mind
