JCC Ring of Light LED Linear 5ft Emergency 64/77/95W CCT Black

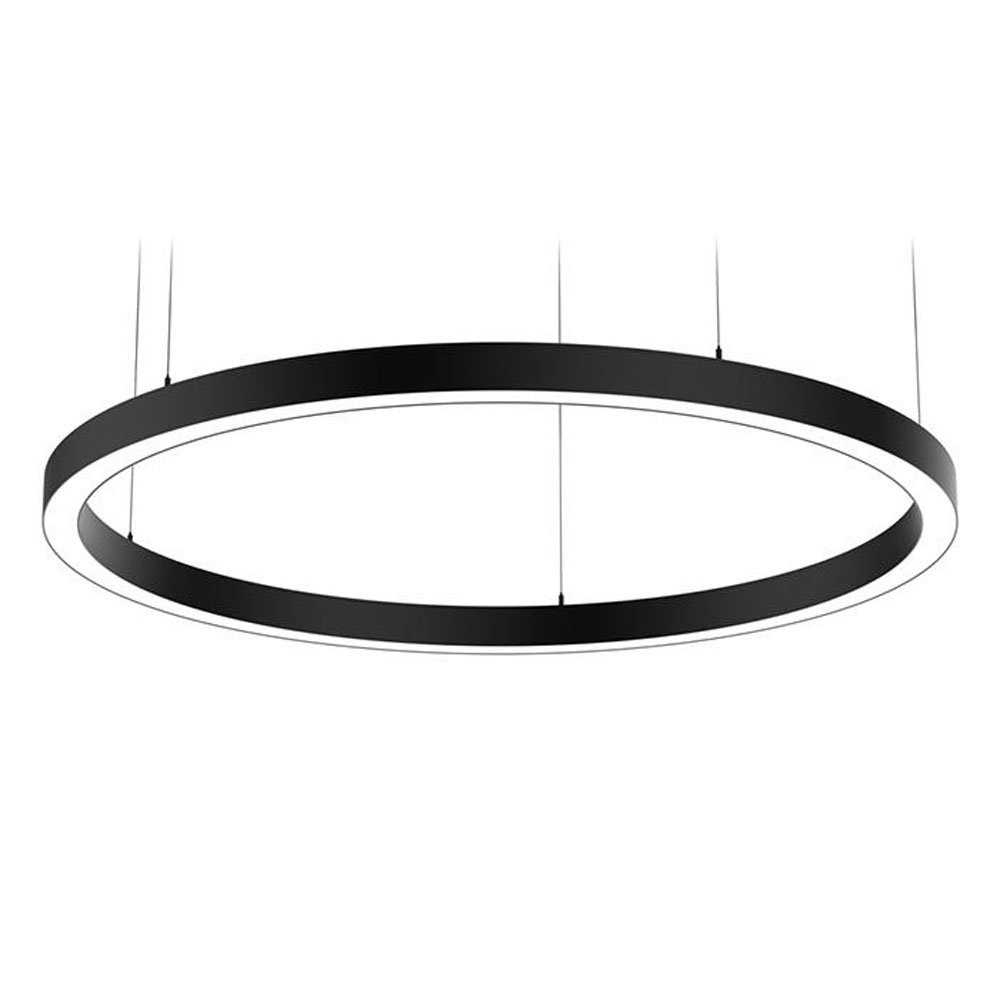

The JCC Ring of Light LED Linear 5ft Emergency 64/77/95W CCT Black is a 1500mm circular pendant designed for high-impact lighting in commercial and retail interiors. Its large diameter and slim black profile create a clean halo of light, ideal as a feature fitting over counters, atriums, breakout areas and reception spaces. Supplied with an adjustable suspension kit, it can be hung up to 5m from the ceiling, making it suitable for both standard and high-ceilinged installations.

High-output, selectable performance

This Ring of Light combines strong output with on-site flexibility thanks to three selectable wattages – 64W, 77W and 95W – delivering approximately 8050, 9550 and 11,650 lumens at up to 126 lm/W. A 3CCT selector (3000K, 4000K, 5700K) allows you to set the colour temperature to suit the space, from warm welcoming light in front-of-house areas to cooler, crisper illumination in busy retail or office environments. A 70° beam angle and CRI 80 ensure wide, comfortable coverage with natural colour rendering across displays and working planes.

Integrated 3-hour emergency backup and long life

This emergency version incorporates a LiFePO₄ 3.2V 3300mAh battery and inverter to provide a minimum three-hour emergency run time, with 24-hour recharge and deep-discharge protection. In emergency mode, it delivers an LOR of 3 / 3 / 2% depending on the selected wattage, supporting compliance for escape routes and open areas. A constant-current Mingfirst driver with power factor 0.9 and THD <20% underpins reliable day-to-day operation, while high-quality 2835 LEDs and robust aluminium/polycarbonate construction are rated for a 50,000-hour LED life (L70, in optimum conditions). The fitting is supplied with a 5-year JCC warranty including batteries (terms apply).

Features of the JCC Ring of Light LED Linear 5ft Emergency 64/77/95W CCT Black:

• 1500mm suspended circular “Ring of Light” luminaire in black finish
• Adjustable suspension kit included, allowing up to 5m drop from the ceiling
• Designed to complement JCC Line of Light linear systems in commercial and retail interiors
• Selectable wattages: 64W / 77W / 95W
• Actual lumen outputs: 8050 / 9550 / 11,650lm
• High efficacy of 126 / 124 / 123 lumens per circuit watt
• 3CCT selectable: 3000K, 4000K and 5700K
• Constant-current Mingfirst driver, output 28–38V DC, secondary running current 850 / 1050 / 1300mA ×2
• Mains input 220–240V AC, 50/60Hz; primary running current 0.32A; inrush 16A @ 242µs
• Power factor 0.9 with total harmonic distortion <20%
• Integral LiFePO₄ 3.2V 3300mAh emergency pack with deep-discharge protection
• Minimum 3-hour emergency duration, 24-hour recharge time
• Emergency light output ratio: 3 / 3 / 2% LOR (per wattage setting)
• 70° beam angle for wide, even illumination
• CRI 80 (Ra 80) for natural, accurate colour rendering
• Aluminium primary housing with polycarbonate outer diffuser for a robust, lightweight build
• Suitable for commercial and retail applications outside bathroom zone 2
• LED lifetime: 50,000 hours (L70 in optimum conditions)
• Height: 75mm
• Diameter: 1500mm
• 5-year warranty (terms and conditions apply) for added peace of mind
