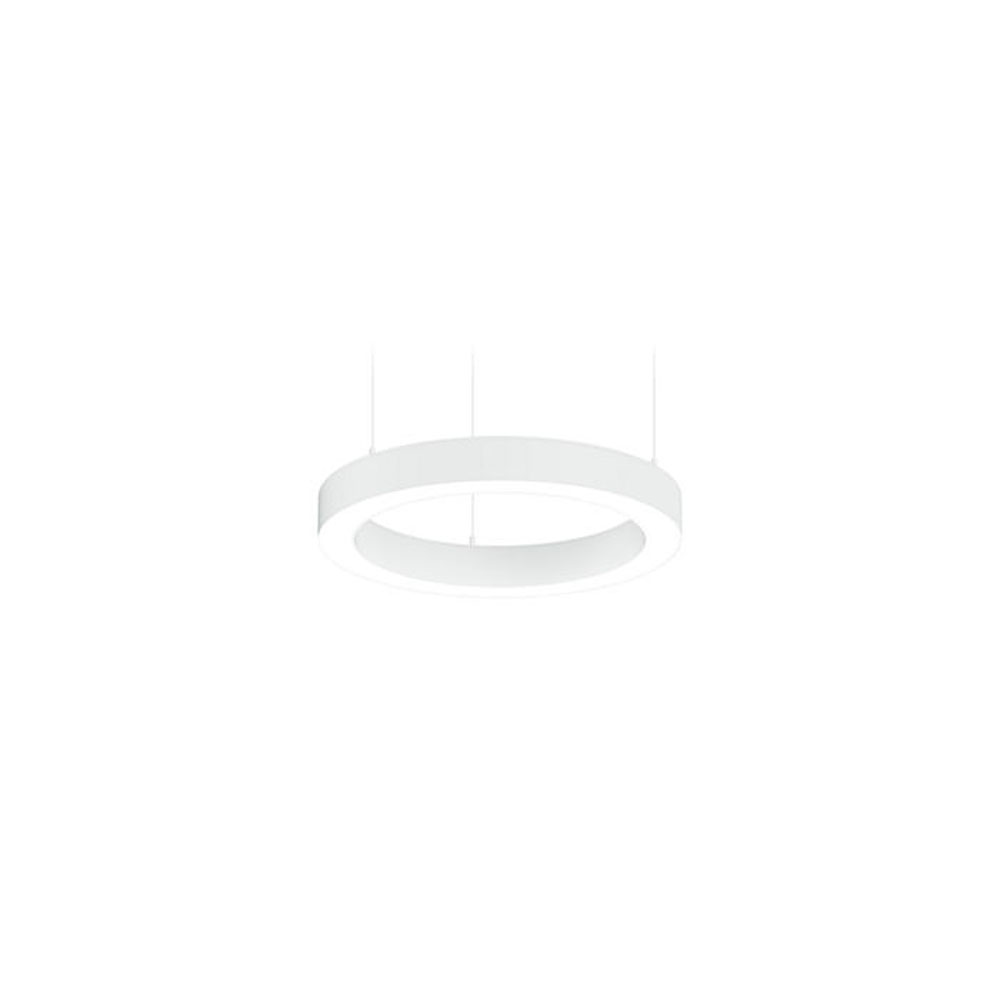

JCC Ring of Light LED Linear 2ft Emergency 24/30/37W CCT White

The JCC Ring of Light LED Linear 2ft Emergency 24/30/37W CCT White is a 600mm suspended circular luminaire designed for commercial and retail spaces that also require integral emergency cover. Finished in white with a slim profile, it creates a clean halo of light that pairs perfectly with the JCC Line of Light linear range in receptions, open-plan offices and circulation areas. An adjustable wire suspension kit is supplied as standard, allowing you to hang the fitting up to 5m from the ceiling to suit different ceiling heights and layouts.

Selectable wattage and 3CCT flexibility

To keep specification simple while still giving you on-site flexibility, this Ring of Light offers three selectable wattages – 20W, 30W and 37W – delivering actual outputs of 3000, 3850 and 4800 lumens with efficacies up to 150 lm/W. A 3CCT selector (3000K, 4000K, 5700K) lets you choose warm, neutral or cool white at commissioning, so the same product can provide softer ambience in reception areas or brighter, crisper light in busy commercial environments. A 70° beam angle and CRI 80 provide smooth, comfortable illumination with reliable colour rendering across the space.

Integrated 3-hour emergency backup

This emergency version of the Ring of Light incorporates a LiFePO₄ battery system to deliver a minimum of three hours’ emergency lighting in the event of a power failure, with an emergency light output ratio of 8%, 7% or 6% LOR depending on the selected wattage. The battery features 3.2V 3300mAh capacity, deep-discharge protection and a 24-hour recharge time, while a constant-current driver with power factor 0.9 and THD <20% ensures efficient day-to-day operation. Built with an aluminium body and polycarbonate diffuser and rated for 50,000 hours LED life, the fitting is a durable, low-maintenance choice for commercial and retail schemes, backed by a 5-year JCC warranty (terms apply).

Features of the JCC Ring of Light LED Linear 2ft Emergency 24/30/37W CCT White:

• 600mm suspended circular “Ring of Light” in white finish
• Adjustable suspension kit included – up to 5m drop from the ceiling
• Complements JCC Line of Light linear products in commercial and retail spaces
• Selectable wattages: 20W / 30W / 37W
• Actual lumen outputs: 3000 / 3850 / 4800lm
• High efficacy up to 150 lumens per circuit watt
• 3CCT selectable: 3000K / 4000K / 5700K
• LiFePO₄ 3.2V 3300mAh emergency pack with deep-discharge protection
• Provides minimum 3-hour emergency duration with 24-hour recharge time
• Emergency light output ratio: 8 / 7 / 6% LOR (per wattage setting)
• Constant-current driver, 28–38V DC output, 650 / 850 / 1050mA secondary current
• Mains input 220–240V AC, 50/60Hz, primary running current 0.25A, inrush 14A (239µs)
• Power factor 0.9 with THD <20% for efficient operation
• 70° beam angle and CRI 80 (Ra 80) for comfortable, accurate illumination
• Aluminium body with polycarbonate diffuser for a robust, lightweight construction
• Recommended for commercial and retail applications outside bathroom zone 2
• LED lifetime: 50,000 hours (L70 under optimum conditions)
• Height: 75mm
• Diameter: 600mm
• 5-year warranty (terms and conditions apply) for added peace of mind
