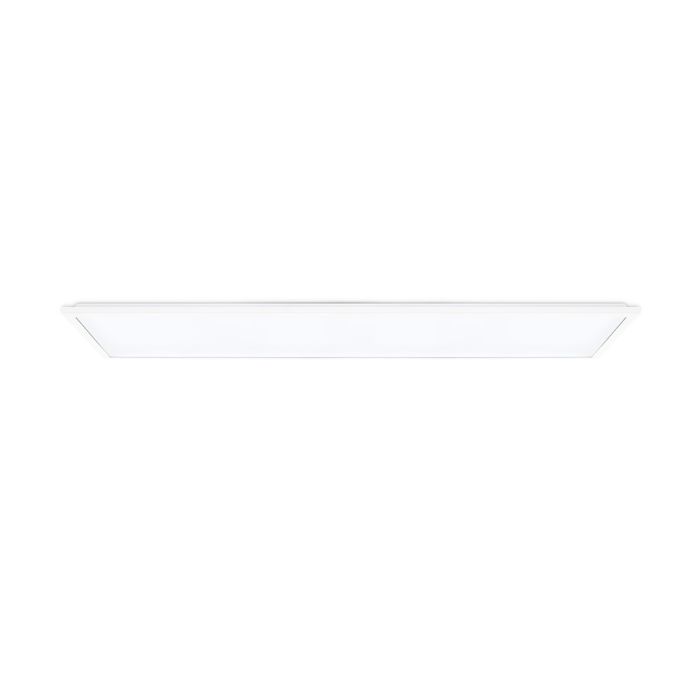

JCC Skytile LED Panel 30W 1200x300mm CCT UGR19 IP40

The JCC Skytile LED Panel 30W 1200x300mm is designed to deliver reliable, high-quality illumination across a wide range of commercial and professional environments. Featuring 3CCT selection (3000K, 4000K and 5700K), this versatile panel allows installers to tailor the colour temperature to suit offices, classrooms, corridors and general working areas.

UGR19 compliant for visual comfort

Designed to comply with BS EN 12464-1 lighting of workspaces, the Skytile panel offers UGR19 low-glare performance, helping to reduce eye strain and improve comfort in screen-based and task-focused environments. With an efficacy of up to 107 lumens per circuit watt, it delivers efficient, evenly distributed light without compromising visual quality.

Installer-focused design with fast wiring

An 8-pole loop-in/loop-out, double-hinged driver with permanent live and earth enables continuous wiring, making installation faster and cleaner on site. A flicker-free, non-dimmable driver is supplied as standard, ensuring stable light output for everyday commercial use.

Key features of JCC Skytile LED Panel 30W 1200x300mm CCT UGR19 IP40:

• 30W LED panel, 1200 x 300mm format
• 3CCT selectable: 3000K / 4000K / 5700K
• UGR19 low-glare design compliant with BS EN 12464-1
• Up to 107 lumens per circuit watt
• Flicker-free non-dimmable driver supplied as standard
• 8-pole loop-in/loop-out double-hinged driver with permanent live and earth
• Meets TP(a) requirements for fire safety compliance
• IP40 rated for indoor use
• Long 54,000-hour LED lifetime
• Length: 1195mm
• Width: 295mm
• Height: 25mm
• Backed by a 5-year warranty
