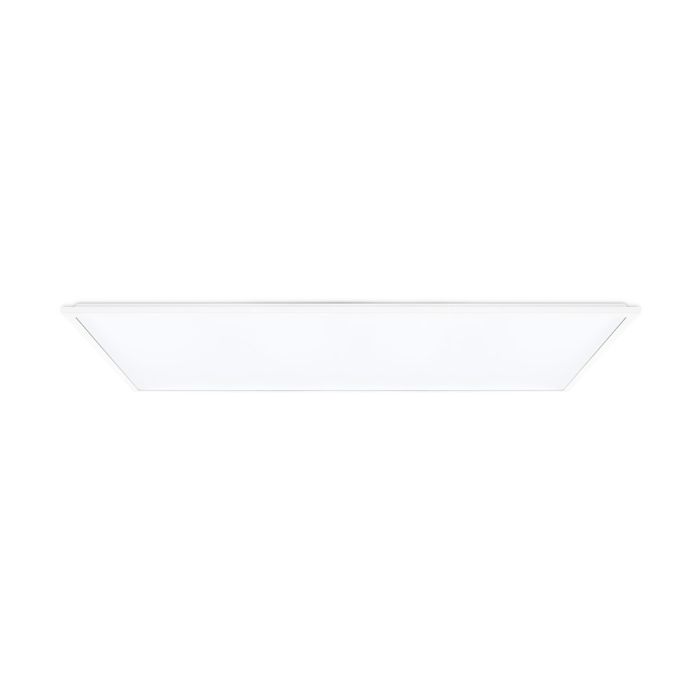

JCC Skytile LED Panel 40W 1200x600mm CCT UGR19 IP40

The JCC Skytile LED Panel 40W 1200x600mm is a high-performance solution designed for modern commercial and public environments where flexibility and efficiency are essential. Featuring 3CCT selectable colour temperatures (3000K, 4000K and 5700K), the panel allows installers and specifiers to tailor the lighting output to suit offices, classrooms, healthcare settings and circulation areas using a single fitting.

Low-Glare, Flicker-Free Performance for Workspaces

Designed to comply with BS EN 12464-1 lighting of workspaces, the Skytile panel delivers UGR ≤19 low-glare performance to enhance visual comfort and reduce eye strain in task-focused environments. A wide 113° beam angle provides even, uniform light distribution, while the flicker-free, non-dimmable driver ensures stable illumination ideal for screen-based and continuous-use applications.

Installer-Friendly Design with High Efficiency and Compliance

Installation is quick and efficient thanks to an 8-pole loop in/loop out double-hinged driver with permanent live and earth, enabling continuous wiring and reduced installation time on site. Delivering up to 128 lumens per circuit watt with outputs of 4600 / 5100 / 4900 lumens depending on CCT selection, the panel meets TP(a) fire performance requirements, carries an IP40 rating, and offers a long 54,000-hour LED lifetime for reliable, low-maintenance operation.

Key features of the JCC Skytile LED Panel 40W 1200x600mm CCT UGR19 IP40:

• 40W LED panel in 1200 x 600mm format
• 3CCT selectable colour temperature: 3000K / 4000K / 5700K
• UGR ≤19 low-glare design, compliant with BS EN 12464-1
• High efficiency of up to 128 lumens per circuit watt
• Lumen output: 4600lm (3000K) / 5100lm (4000K) / 4900lm (5700K)
• Wide 113° beam angle for uniform light distribution
• Flicker-free, non-dimmable driver supplied as standard
• 8-pole loop in / loop out double-hinged driver with permanent live and earth
• Meets TP(a) fire performance requirements
• IP40 rated for indoor commercial applications
• Long 54,000-hour LED lifetime for reduced maintenance
• Height: 25mm
• Width: 595mm
• Length: 1195mm
• Backed by a 5-year warranty
