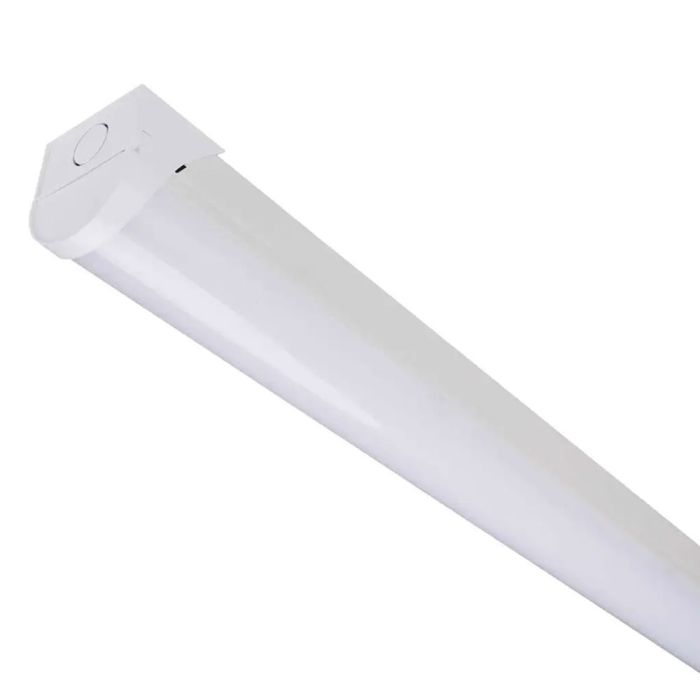

Knightsbridge 230V 4ft LED CCT Batten Light Modular

Knightsbridge BATMCW4 4ft Modular CCT and Wattage Adjustable LED Batten – Flexible Commercial Lighting

Knightsbridge BATMCW4 is  a versatile LED lighting solution featuring a modular design, tunable CCT (3000K/4000K/5700K), adjustable wattage (17W/22W/26W/31W) and up to 7200 lumens. Powered by a Tridonic LED driver, with 173lm/W efficacy, 100,000-hour lifespan, IP20 rating and a 7-year warranty, it ensures energy savings, durability and easy installation.

Adjustable Wattage (17W/22W/26W/31W): Offers flexible outputs (2600lm/3300lm/3900lm/4500lm at 4000K) to suit varying lighting needs.

Selectable CCT (3000K/4000K/5700K): Select warm white (3000K), cool white (4000K), or daylight (5700K) for customised ambiance.

Modular Design: Supports optional MODMWS microwave sensor and MODEMKIT emergency conversion kit for customised functionality (sold separately).

High Efficacy (Up to 173lm/W): Maximises brightness while minimising energy consumption, ideal for cost-effective lighting.

Tridonic LED Driver: Ensures reliable, consistent performance with a power factor of 0.95 and 90% efficiency.

100,000-Hour Lifespan: Delivers long-lasting illumination, reducing maintenance costs for commercial and industrial spaces.

IP20 & IK08 Ratings: Provides dust resistance and impact durability for indoor reliability.

Hassle-Free Installation: Features 600mm fixing centres, BESA box compatibility, hinged gear tray, push-fit loop-in/loop-out terminals and multiple conduit entry points for retrofit and new builds.

Durable Construction: Built with pressed steel and polycarbonate opal diffuser for even light distribution.

BS 60598 Compliance: Meets UK safety standards for secure, high-quality lighting.

7-Year Warranty: Backed by a 7-year guarantee, ensuring confidence in durability and performance.

Features of Knightsbridge 4ft Modular CCT and Wattage Adjustable LED Batten:

• 4ft Modular LED Batten
• Supports Microwave Sensor and Emergency Conversion Kits (sold separately)
• Adjustable Wattage: 17W/22W/26W/31W
• Adjustable CCT: 3000K/4000K/5700K
• Lumens Per Watt: 173lm/W
• Tridonic LED Driver
• Hinged Gear Tray
• Push-Fit Loop-In/Loop-Out Terminals
• Multiple Conduit Entry Points
• Pressed Steel Construction
• Opal Diffuser
• Lifespan: 100,000 Hours
• Fixing Centres: 600mm
• BESA Box Compatible
• Length: 1225mm
• Width: 61mm
• Projection: 70mm
• Warranty: 7 Years
