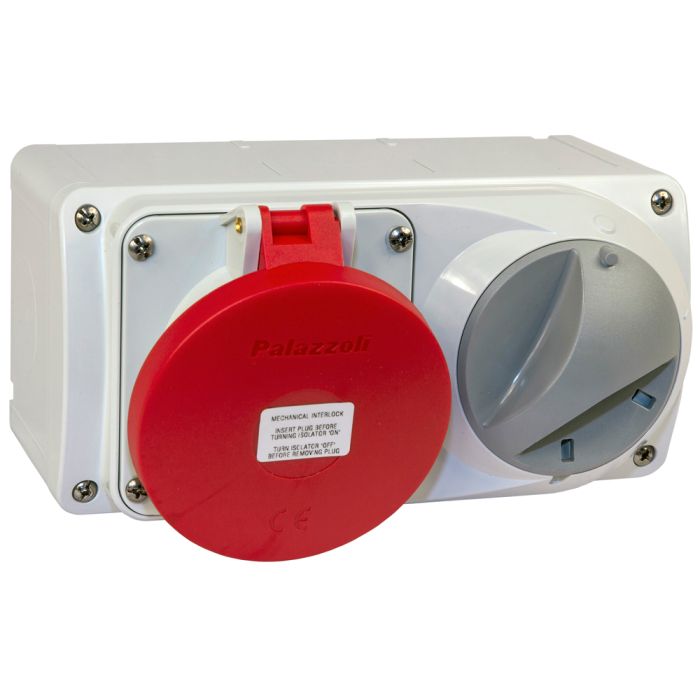

Lewden 32A 5 Pin 415V Interlocked Socket Red IP44

Lewden 454246 32A Red Industrial Interlocked Socket (PM32/454246LW). 32A 415V red 5 pin socket with combined rotary isolator switch weatherproof to IP44. A mechanical interlock prevents making or breaking of the electrical circuit under load conditions, by not allowing the isolator to be switched on until the plug has been fully inserted, nor the plug to be removed until the isolator has been switched off. Part of a comprehensive range of industrial plugs, sockets and accessories manufactured by Lewden. Compatible with all other makes of industrial plugs including MK Commando, ABB etc. For use in extreme environments; high impact resistance, excellent ingress protection, corrosion proof, outstanding temperature performance and high resistance to most chemicals. Designed and manufactured for use in the most arduous of applications.

Key Features of Lewden 32A 5 Pin 415V Interlocked Socket Red IP44:

• Industrial socket with rotary isolator switch
• Mechanical Interlock prevents plug being removed while switched in the ON position and only inserted whilst in the OFF position
• Can be locked in ON or OFF position with a 3mm padlock (not included)
• Amps: 32A
• Voltage 415V
• Colour: Red
• Pin configuration: 3P+N+E or 5 Pin
• IP Rating: IP44, weatherproof
• Frequency: 50-60Hz
• Interchangeable with all other makes of industrial plugs and sockets
• Safe and reliable
• Fast, simple assembly and wiring, for lower installation costs
• High corrosion resistance
• Strong and durable thermoplastic construction
• High resistance to mechanical impact - IK08
• Self extinguishing: V2
• Can be fitted with 2x auxiliary contacts signalling the insertion of a plug
• Operating temperature: -25 to +50 deg C
• Height: 130mm
• Width: 206mm
• Depth: 131mm
• Cable Entry: Min 8mm, Max 13mm
• Standards: BS EN 60309 and IEC60309
