Lewden 16A 5 Pin 415V Interlocked Socket Red IP44

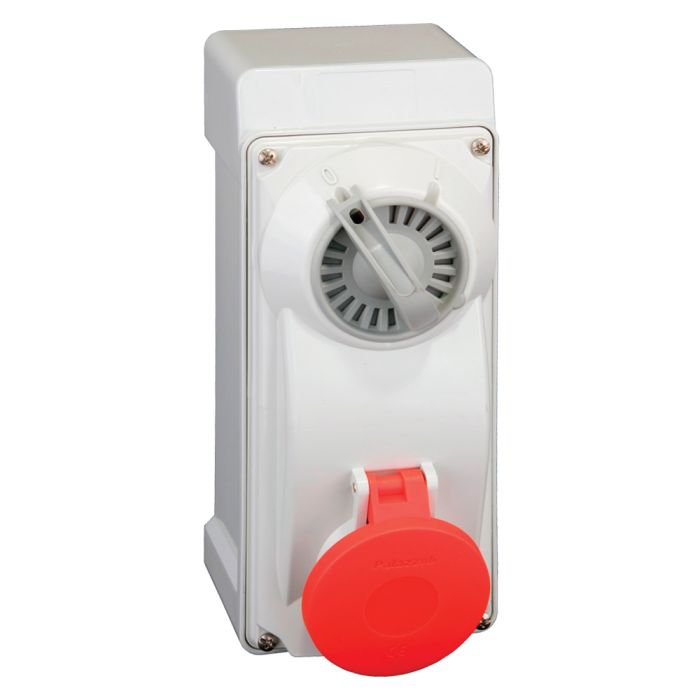

Lewden 452146LW 16A Red Industrial Interlocked Socket. 16A 400V red 4 pin socket with combined rotary isolator switch weatherproof to IP44. A mechanical interlock prevents making or breaking of the electrical circuit under load conditions, by not allowing the isolator to be switched on until the plug has been fully inserted, nor the plug to be removed until the isolator has been switched off. Part of a comprehensive range of industrial plugs, sockets and accessories manufactured by Lewden. Compatible with all other makes of industrial plugs including MK Commando, ABB etc. For use in extreme environments; high impact resistance, excellent ingress protection, corrosion proof, outstanding temperature performance and high resistance to most chemicals. Designed and manufactured for use in the most arduous of applications.

Lewden 452146LW 16A Red Industrial Interlocked Socket – IP44 Weatherproof

Power your industrial installations with the Lewden 452146LW 16A Red Industrial Interlocked Socket, a premium 4-pin socket featuring IP44 weatherproof protection, a mechanical interlock and a rotary isolator switch ensuring safe, reliable power delivery in extreme environments. Compatible with MK Commando, ABB and other industrial plugs, it offers high impact resistance (IK08), corrosion resistance and durability for construction sites, factories and outdoor applications. With easy wiring, auxiliary contact options, and BS EN 60309 compliance, the Lewden 452146LW is ideal for demanding industrial projects.

IP44 Weatherproof Rating: Ensures reliable performance in wet and dusty conditions, ideal for outdoor and industrial use.

Mechanical Interlock: Prevents plug insertion/removal under load, enhancing safety by locking in ON or OFF positions with a 3mm padlock (not included).

16A 400V 4-Pin Configuration: Supports 3-pin + neutral + earth setups for high-power industrial applications.

Rotary Isolator Switch: Provides secure circuit control, ensuring safe operation in heavy-duty environments.

Universal Compatibility: Interchangeable with MK Commando, ABB and other BS EN 60309-compliant plugs and sockets.

High Durability: Thermoplastic construction with IK08 impact resistance, V2 self-extinguishing and high corrosion resistance for extreme environments.

Easy Installation: Fast, simple wiring with min 8.5mm, max 14mm cable entry and flexible assembly for lower installation costs.

Auxiliary Contacts: Supports 2x auxiliary contacts for plug insertion signalling, enhancing system integration.

Wide Operating Temperature: Performs reliably from -25°C to +50°C, suitable for harsh conditions.

Compact Dimensions: 260mm (H) x 108.4mm (W) x 135mm (D) for efficient installation.

Features of Lewden 452146LW 16A Red Industrial Interlocked Socket:

• Industrial socket with rotary isolator switch
• Mechanical Interlock prevents plug being removed while switched in the ON position and only inserted whilst in the OFF position
• Can be locked in ON or OFF position with a 3mm padlock (not included)
• Amps: 16A
• Voltage 400V
• Colour: Red
• Pin configuration: 3 Pin + Neutral + Earth or 5 Pin
• IP Rating: IP44, weatherproof
• Frequency: 50-60Hz
• Interchangeable with all other makes of industrial plugs and sockets
• Safe and reliable
• Fast, simple assembly and wiring, for lower installation costs
• High corrosion resistance
• Strong and durable thermoplastic construction
• High resistance to mechanical impact - IK 08
• Self extinguishing: V2
• Can be fitted with 2x auxiliary contacts signalling the insertion of a plug
• Operating temperature: -25 to +50 deg C
• Height: 260mm
• Width: 108.4mm
• Depth: 135mm
• Cable Entry: Min 8.5mm, Max 14mm
• Standards: BS EN 60309 and IEC60309
