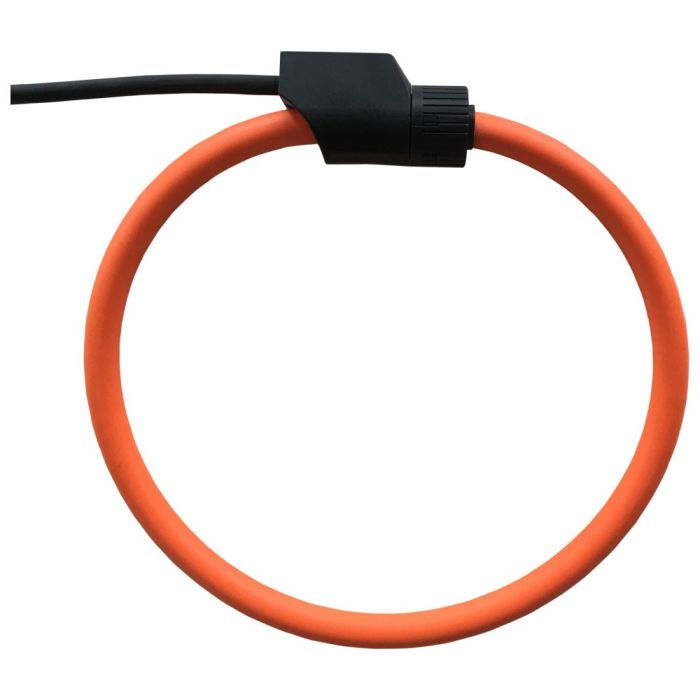

NexBlue CT Clamp Flexible Coil 1500A 300mm ZRC-300

NexBlue ZRC-300 Rogowski CT Clamp 1500A 300mm for flexible three phase current measurement with NexBlue Zen load balancing systems.

The NexBlue ZRC-300 is a flexible 3In1 Rogowski coil designed for high-current EV charging, energy monitoring and load balancing installations. With a 1500A current measurement rating and 300mm measuring opening, it is ideal for larger conductors, busbars and commercial electrical setups where traditional rigid CT clamps may not fit.

Smart High-Current Monitoring

Designed for use with NexBlue Zen current sensor systems, the ZRC-300 helps provide the live current data needed for dynamic EV charger load balancing. This allows connected chargers to respond to site demand, helping protect the electrical supply while keeping charging efficient.

The 3In1 coil design supports monitoring across up to three phase conductors, making it a practical choice for commercial EV charging infrastructure, shared parking and larger energy management projects.

Flexible Rogowski Coil Installation

The flexible Rogowski design makes installation easier around awkward conductors or in tight spaces. It provides safe, contactless AC current measurement without interrupting the electrical circuit, helping reduce disruption during retrofit and upgrade work.

The 300mm light opening, 2m connection lead, L1/L2/L3 conductor markings and power direction arrow support accurate installation on larger electrical systems.

Built For NexBlue Charging Systems

The ZRC-300 is compatible with NexBlue energy meters and charging systems, including NexBlue Zen three phase current sensor applications. It is also compatible with NexBlue current transformer extension cable and multifunction adapter kit accessories, supporting more flexible installation layouts.

Key Features of the NexBlue ZRC-300 Rogowski CT Clamp 1500A 300mm Include:

• Flexible Rogowski CT Clamp For High-Current EV Charging And Energy Monitoring
• 1500A Current Measurement For Larger Commercial Load Balancing Applications
• 300mm Measuring Opening For Large Conductors, Busbars And Tight Installations
• 3In1 Coil Design For Monitoring Up To Three Phase Conductors
• Compatible With NexBlue Zen Three Phase Current Sensor Systems
• Supports Dynamic Load Balancing By Providing Real-Time Current Data
• Safe Contactless AC Current Measurement Without Interrupting The Circuit
• Flexible Coil Design Helps Fit Around Awkward Or Oversized Conductors
• High Accuracy And Linearity For Reliable Energy Monitoring
• 2m Connection Lead For Practical Installation Flexibility
• L1, L2 And L3 Markings Support Correct Phase Identification
• Power Direction Arrow Helps Support Correct Installation
• Compatible With NexBlue Current Transformer Extension Cable And Multifunction Adapter Kit
• Colour Finish: Black And Orange
