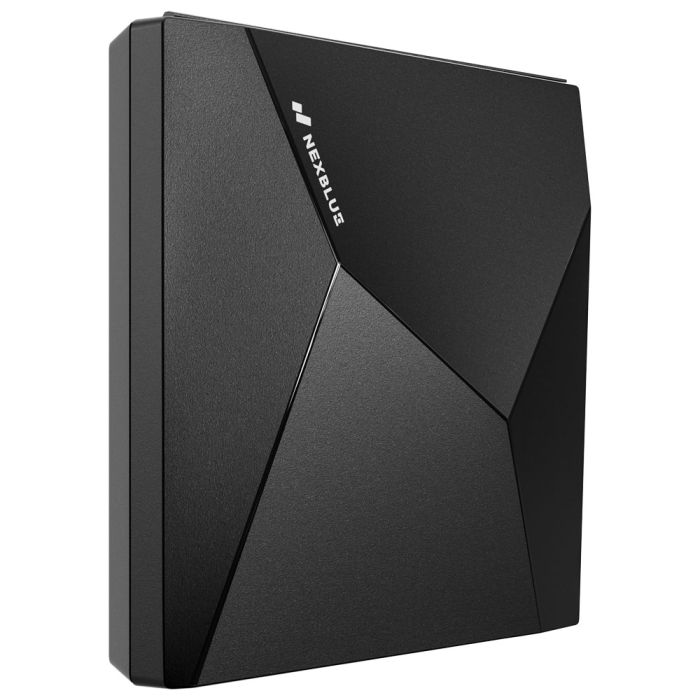

NexBlue Ready EV Charger Dummy Pre-Install Backplate and Cover

NexBlue Ready Pre-Installed Docking System for NexBlue chargers with pre-installed backplate, blind cover and future-ready charger upgrade support.

The NexBlue Ready is a pre-installed docking system designed to help homes, commercial sites and parking locations prepare EV charging infrastructure before the charger is required. It allows the electrical installation and backplate to be fitted in advance, giving customers a lower-cost route to future EV charger deployment.

Prepared For Future Charger Upgrades

The NexBlue Ready includes a pre-installed backplate with blind cover, allowing spaces to be prepared now and upgraded with compatible NexBlue chargers later. Backplate RFID stores configuration data, while NexSync can auto-transfer updated settings to future-installed chargers locally.

This makes it ideal for apartments, workplaces, car parks and developments where EV charging demand is expected to grow over time.

Faster, Cleaner Installation Planning

By completing the electrical preparation once, NexBlue Ready helps reduce future installation work and disruption. The new backplate design supports top, bottom and rear cable entry, six individual cable entries, adjustable cable clamps and a spacious interior for easier cable routing.

It is compatible with NexBlue’s new backplate charger range, including NexBlue Edge 2, NexBlue Edge Max, NexBlue Delta, NexBlue Point 2 and NexBlue Delta Max.

Durable Backplate Design

The NexBlue Ready backplate is built for long-term installation with UV resistance, IK10 impact protection and IP44 ingress protection when fitted with the blind cover. It also includes an integrated spirit level, reinforced design, optimised thermal management and a flat terminal layout for tighter wiring connections.

Key Features of the NexBlue Ready Pre-Installed Docking System Include:

• Pre-Installed Docking System For Future NexBlue EV Charger Upgrades
• Backplate With Blind Cover For Preparing Charging Infrastructure In Advance
• Backplate RFID Stores Configuration Data For Easier Future Charger Setup
• NexSync Auto-Transfers Updated Settings To Future-Installed Chargers Locally
• One-Time Electrical Installation Helps Reduce Future Rehiring And Site Disruption
• Compatible With NexBlue Edge 2, Edge Max, Delta, Point 2 (UK) And Delta Max (UK)
• Top, Bottom And Rear Cable Entry For Flexible Installation
• Six Individual Cable Entries And Adjustable Cable Clamps For Easier Wiring
• Integrated Spirit Level Helps Speed Up Accurate Backplate Mounting
• IP44 Ingress Protection With Blind Cover And IP22 Without Blind Cover
• IK10 Impact Protection And UV Resistance For Durable Installation
• Installation Kit Included For Installer Convenience
• Height: 235mm
• Width: 230mm
• Depth: 73mm
• Colour Finish: Black
