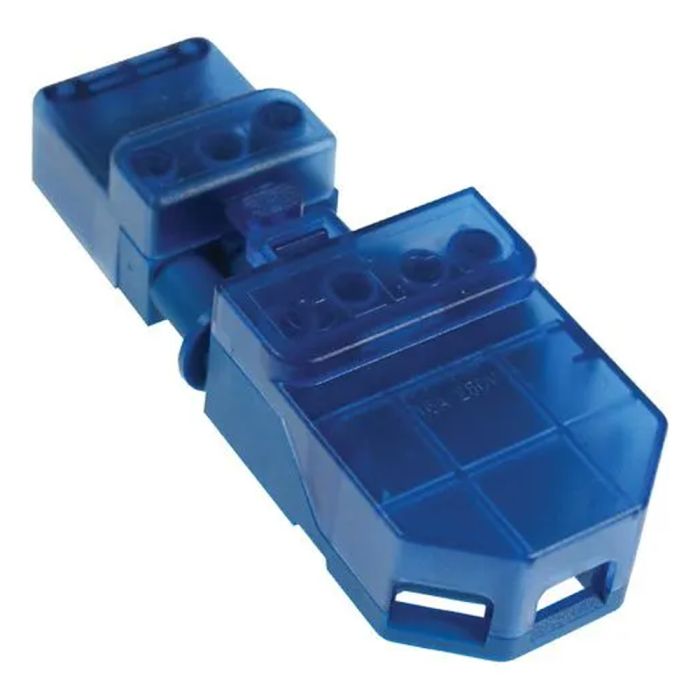

Click Flow CT101C Lighting Connector 3 pole 20A

Scolmore CT101C Click Flow Connector 3 pole 20A Downlighter Junction Box. Click flow junction boxes are designed for ease of installation. Primarily for usage throughout lighting circuits as a lighting junction box. Click CT101C allows for all the cables to be wired, before simply "plugging in" the male and female connectors. Ideal for the safe and efficient fitting of multiple downlights and lighting fixtures.

Installation is fast and simple, featuring large easy access terminals, 4 cable entry points alongside a unique lock and release plug mechanism. Installations are neater, more organised and faster, ideal for saving you time on site.

CT101C is comprised of 2 sections, male and female. Both are fitted with silver plated brass terminals, with the terminal capacity for 3 x 2.5mm² alongside an additional loop terminal for the for the female connector , and 3 x1.5mm² for the male connector. Disconnecting the male/female plug connection allows for easy maintenance or replacement of the light fitting.

Features of CT101C Click Flow Connector:

• Lighting Junction Box
• Current Rating: 20A
• Max Voltage: 250V
• Number of Terminals (male): 3 x 1.5mm²
• Number of Terminals (female): 3 x 2.5mm²
• Cable Entry Points: Four
• IP Rating: IP20
• Length: 105mm
• Width: 40mm
• Depth: 23mm
• Material: Plastic
• Colour: Blue
• Standards: BS 5733
