Spit MultiClip Data and Cable Clip 565843

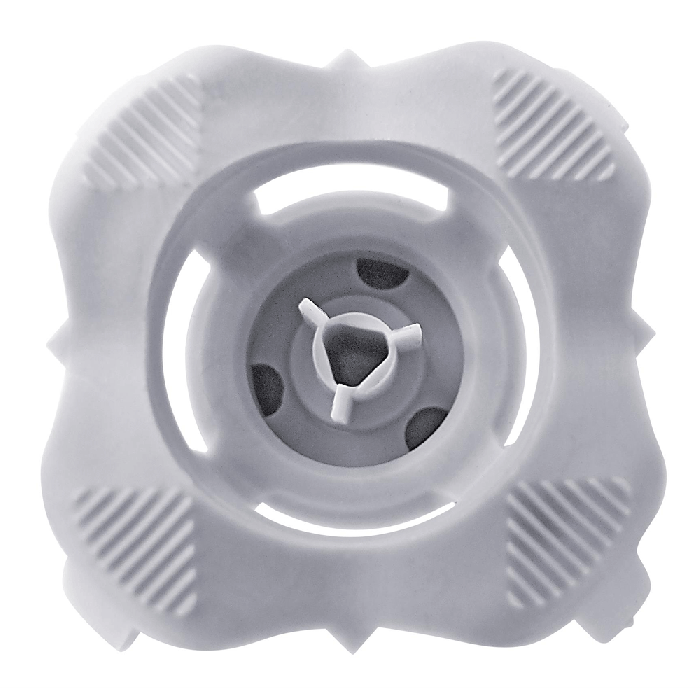

Spit Multiclip 565843 — Multi Purpose Data & Cable Clip For Pulsa HC6 Concrete Fixings

The Spit Multiclip is a multi purpose data and cable clip designed for fast installation of both specialised and standard cables to concrete using Pulsa HC6 pins and gas tools. It forms part of the Pulsa HC6 plastic accessories range, providing a neat, repeatable way to support small cable bundles and looms from ceilings and walls without drilling and plugging.

Fast, Versatile Cable Management

Multiclip accepts soft hook and loop (Velcro style) straps and standard plastic cable ties so you can clamp single or multiple cables securely without crushing the insulation. With a recommended cable diameter range from 16mm to 32mm, it covers typical data, control and power bundles used on commercial and industrial projects, helping reduce the number of different clip types you need to stock.

Designed As Part Of The Pulsa HC6 System

Used together with HC6 gas pins, Multiclip can be directly fastened to cracked or non cracked concrete, including pre stressed and hollow core slabs, using Spit Pulsa P27, P40P+ or P65 tools. The Pulsa HC6 light cable tray fixing system, which includes Multiclip, delivers a design resistance of 0.035kN per metre at 12–15mm embedment in cracked concrete C20/25 to C50/60, allowing regular support spacing for light duty containment and cable runs.

Halogen Free, Heat Tested Plastic Body

Multiclip is moulded from halogen free polypropylene and tested to a 650°C incandescent wire test in accordance with ISO CEI 695-2, supporting its use in building installations where low smoke, halogen free components are preferred. Recommended installation temperatures are from -5°C to +35°C, with an operational temperature range from -30°C to +55°C, giving confidence that clips will remain stable in typical plant rooms, risers and ceiling voids.

Ideal For Data, LV And Containment Runs

This compact clip is optimised for use with Pulsa HC6 pins for fixing to concrete soffits and walls, making it well suited to supporting data and comms cables, small power bundles, control wiring and low voltage circuits along corridors, risers and above suspended ceilings. It can also be combined with other Pulsa HC6 accessories such as TRH Clip, MCC 0 metal cable tie and CLIPELEC bases to create complete, mixed cable management solutions across the job.

Key Features Of Spit Multiclip Include:

• Multi Purpose Data And Cable Clip For Direct Fixing To Concrete With Pulsa HC6 Pins
• Accepts Soft Hook And Loop Straps And Standard Plastic Cable Ties For Flexible Cable Bundling
• Suitable For Cable Diameters Approximately 16mm To 32mm
• Part Of The Pulsa HC6 Plastic Accessory Range For Electrical And Data Installations
• Halogen Free Polypropylene Body For Use In Low Smoke Halogen Free Installations
• Incandescent Wire Test Rating 650°C To ISO CEI 695 2 For Additional Safety Assurance
• Recommended Installation Temperature Range From Minus 5°C To Plus 35°C
• Operational Temperature Range From Minus 30°C To Plus 55°C For Building Services Environments
• Designed To Be Fixed With Spit HC6 Gas Pins And Pulsa P27 P40P Plus Or P65 Nailers
• Included In The Pulsa HC6 Light Cable Tray Fixing System With Design Resistance 0.035kN Per Metre At 12–15mm Embedment In Cracked Concrete
• Suitable For Cracked And Non Cracked Concrete Including Pre Stressed And Hollow Core Slabs When Used With Approved HC6 Pins
• Ideal For Supporting Data Cables Control Wiring And Small Power Bundles Along Ceilings Walls And In Risers
