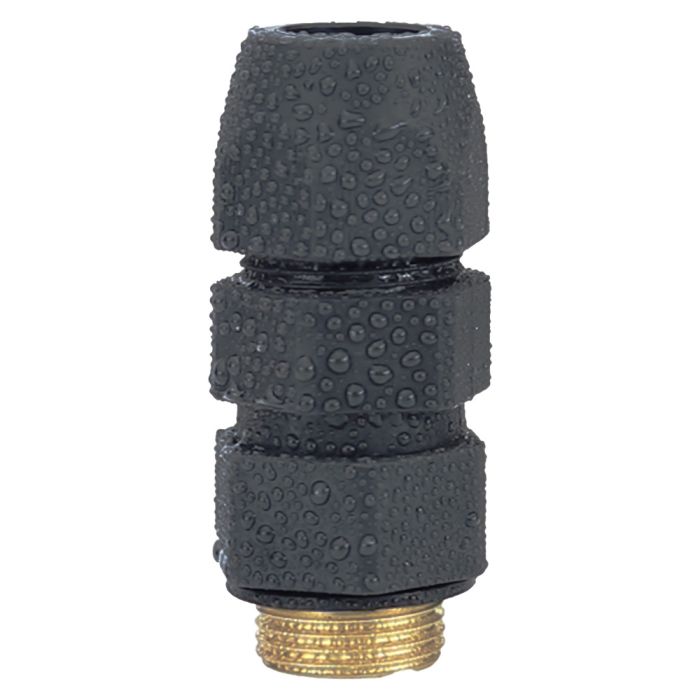

SWA STORM20 LSF Armoured Cable Gland M20 20mm IP68

SWA STORM20 armoured cable gland (pack of two) with a submersible ingress protection rating of IP68. New and improved design now even faster and easier to fit, especially when compared with the old conventional armoured cable glands. SWA's Storm range of cable glands feature new innovative anti-rotational technology which prevents damage caused by rotation on an armoured wire during installation/ cable pulling. Suitable for armoured and non-armoured cables including SY and CY braided cables. SWA STORM20 uses halogen-free polyimide material, making the glands safe for use in buildings and public spaces and perfect for use in any wet underground environment. Pack complete with 2 glands, 2 earth tags and 2 brass locknuts.

Features:

• Entry thread: M20 x 1.5
• IP rating: IP68 (submersible)
• Armoured wire range: 0.8mm - 1.25mm
• Cable diameter fit: 15.5mm - 21mm diameter
• Non-corrosive
• No toxic gases
• UV stabilised
• Zero-halogen
• Gasket and O-rings are NBR
• Material: Brass with black rubber shroud
• Operating temperature: Rated from -20 Degrees C to +80 Degrees C
• Standards: BS EN 62444:2013
