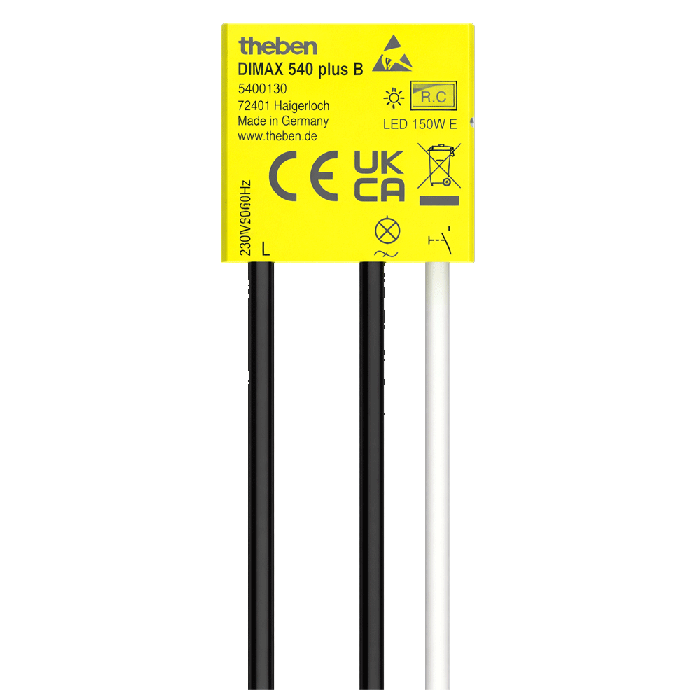

Theben Dimax 540 PLUS B LED Mini Dimmer

Theben DIMAX 540 Plus B is a compact, flush-mounted intelligent LED dimmer designed for reliable control of LED, incandescent and halogen lighting in retrofit and new installations.

Simple, Intuitive Push-Button Control

Mounted behind a retractive switch, it turns a simple push button into a full dimmer without major rewiring. A short press toggles the light on/off, a press and hold dims up or down smoothly (full 0–100% range in about 5 seconds), and a double press jumps straight to 100% brightness – giving users intuitive control from a standard wall switch position.

Retrofit Friendly – No Neutral Required

Optimised for both R and C loads, the DIMAX 540 Plus B delivers smooth, flicker-free dimming across a wide range of dimmable LED lamps as well as traditional incandescent and halogen loads up to 150W. With no neutral conductor required, it’s ideal for upgrades in older properties where only live and switched live are present, helping electricians add dimming without chasing walls or pulling new cables.

Intelligent Dimmer

What makes it “intelligent” is the built-in control logic: you can adjust the minimum brightness to prevent LED flicker, the memory function saves the last light level and gently returns to it when switched back on, and a double press always recalls 100% brightness when maximum light is needed.

Two-Way & Multi-Way Dimming From Multiple Switches

The ultra-small, fully encapsulated body is designed for two-way and multi-way use. With support for cable lengths up to 100m, multiple retractive switches can control the same dimmer from different locations, while maintaining the same short-press / hold / double-press behaviour at every switch point.

Efficient, Protected & Built For Long-Term Use

Designed for long-term performance, the DIMAX 540 Plus B includes temperature cut-off, overcurrent protection and a short-circuit fuse. Stand-by consumption is just 0.34W, helping keep running costs and energy use to a minimum in both residential and commercial applications.

Key Features Of The Theben DIMAX 540 Plus B 5400130 Include:

• Retrofit Intelligent Dimming Module Mounted Behind A Retractive Push Button Switch To Turn A Simple Switch Into A Full Dimmer
• Universal Flush-Mounted Dimmer For R And C Loads With Smooth, Stable Light Control
• Short Press On The Retractive Switch Toggles The Light On Or Off
• Press And Hold Smoothly Dims Up Or Down With Full 0 To 100 Percent Range In Around 5 Seconds
• Double Press On The Switch Instantly Sets The Light To 100 Percent Full Brightness
• Adjustable Minimum Brightness Function Factory Set Around 10 Percent To Prevent Flicker And Improve Led Compatibility
• Memory Function Saves The Last Set Light Level And Dims Back To This Value The Next Time The Light Is Switched On
• No Neutral Conductor Required Ideal For Retrofit And Upgrade Projects With Only Live And Switched Live Present
• Universal Flush Mounted Dimmer For R And C Loads Optimised For Dimmable Led Lamps As Well As Incandescent And Halogen Loads Up To 150W
• Supports Two Way And Multi Way Control With Multiple Retractive Push Buttons And Cable Lengths Up To 100m Between Switches
• Ultra Shallow 10 Point 4mm Depth Allows Installation Behind A Retractive Switch In A 25mm Back Box But A 35mm Deep Box Is Recommended To Provide Comfortable Wiring Space
• Fully Encapsulated Electronics With Integrated Temperature Cut Off Overcurrent Protection And Short Circuit Fuse For Long Term Reliability
• Low Stand By Power Consumption Of Approximately 0 Point 34W To Help Reduce Energy Use
• Operating Voltage 230V AC At 50 To 60Hz With An Ambient Temperature Range Of Minus 10 Degrees Celsius To Plus 45 Degrees Celsius
• Height: 25.5mm
• Width: 26.4mm
• Depth: 10.4mm
