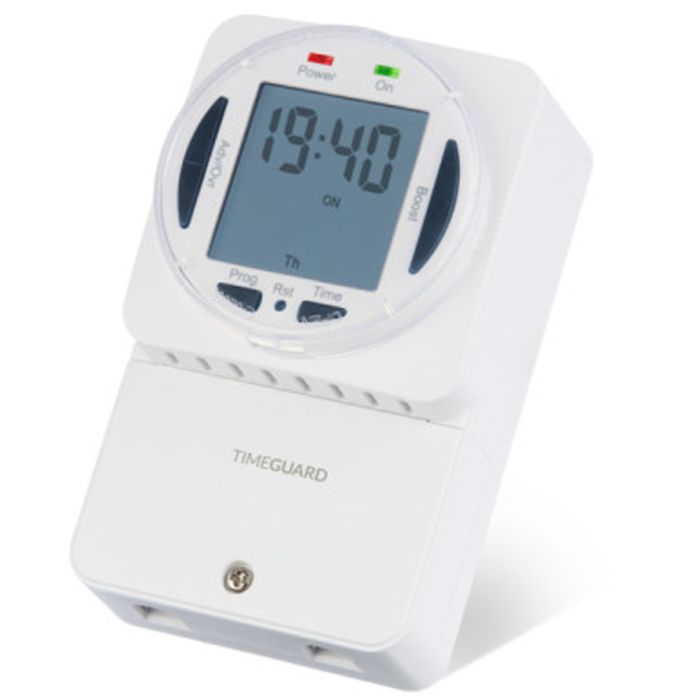

Timeguard Digital Timeswitch 24 Hour NTTHDS

Product Code NTTHDS

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£25.00

exc VAT

£30.00 : inc VAT

£30.00

inc VAT

£25.00 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £25.00 £30.00
  • 3+ £24.98 £29.97

Qty:

The Timeguard NTTHDS Digital Timeswitch offers unparalleled control over your electrical devices, allowing users to automate schedules and optimise energy consumption.

With 8 ON/8 OFF programs per day and 56 ON/56 OFF programs per week, users can effortlessly tailor operation to their exact requirements. This versatile timeswitch provides the flexibility to manage lighting schedules, automate irrigation systems, control ventilation and create customised programs for every scenario.

Intuitive Operation, Enhanced Convenience

With a user-friendly design, the NTTHDS boasts an extra-large, backlit display for easy viewing, even in low-light conditions. The intuitive interface simplifies programming, allowing for quick and effortless adjustments to your schedules. Enjoy the convenience of automatic Summer/Winter time changes, ensuring your programs remain accurate throughout the year.

Robust Reliability, Uncompromising Quality

Built to withstand the demands of heavy-duty applications, the NTTHDS features voltage-free changeover contacts for seamless integration with various electrical systems. Backed by a reliable backup battery, the timeswitch maintains operation even during power outages, ensuring uninterrupted control. Experience peace of mind with features like program suspension, loop and override functions, providing you with complete control over your schedules at all times.

Key Features of Timeguard 24/7 Digital Timeswitch:

  • Compact Digital Timeswitch with 24/7 Programming
  • 20A Capacity
  • 8 ON / 8 OFF Programs Per Day
  • 56 On / 56 Off Programs Per Week
  • Easy-to-Read Backlit Display with Protective Cover
  • Automatic Summer/Winter Time Adjustment
  • Program Suspension, Loop and Override Functions
  • Self-Cancelling Override & Boost Options
  • Shortest Switching Time: 1 Minute
  • Voltage-Free Changeover Contacts
  • Backup Battery
  • Red LED "Mains On" & Green LED "Output" Indicators
  • IP Rating: IP20
  • Height: 120mm
  • Width: 74mm
  • Depth: 53mm
  • Guarantee: 3 Years

View All Time Switches

View All Timeguard

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Timeguard NTTHDS Datasheet
Model Number: NTTHDS
Brand: Timeguard
Range: Timeswitches
Product Type: 24/7 Digital Timeswitch
Operating Voltage: 230V AC
Frequency: 50Hz
Installation Type: Surface Mount
Earth Class Rating: Class I
Operating Temperature: 0°C to 40°C
IP Rating: IP20
Battery Type: NiMH 2.4V 80mAh
Power Reserve: Up to 720 Hours
Battery Charge Time: 24 Hours
Contact Type: Volt Free Normally Open / Normally Closed
Program Modes: 24 Hour/ 7 Day, Manual Override, Loop, Suspend, 1 or 2 Hour Boost, Permanent On/Off
Programmable Slots: 8 ON, 8 OFF Daily
Switch Type:  Single Pole, Double Throw (SPDT)
Switch Rating:  20A Resistive (4kW), 8A Inductive, 200W LED,
3000W halogen lighting, 750W fluorescent lighting,
100W CFL lighting. 1HP motor (750W
Shortest Switching Time: 1 Minute
Mounting Hole Centres: 95mm
Mounting: Wall with Included Backplate
Cable Entry:  4mm²
Dimensions (HxWxD): 120mm x 74mm x 53mm
Warranty: 3 Years
