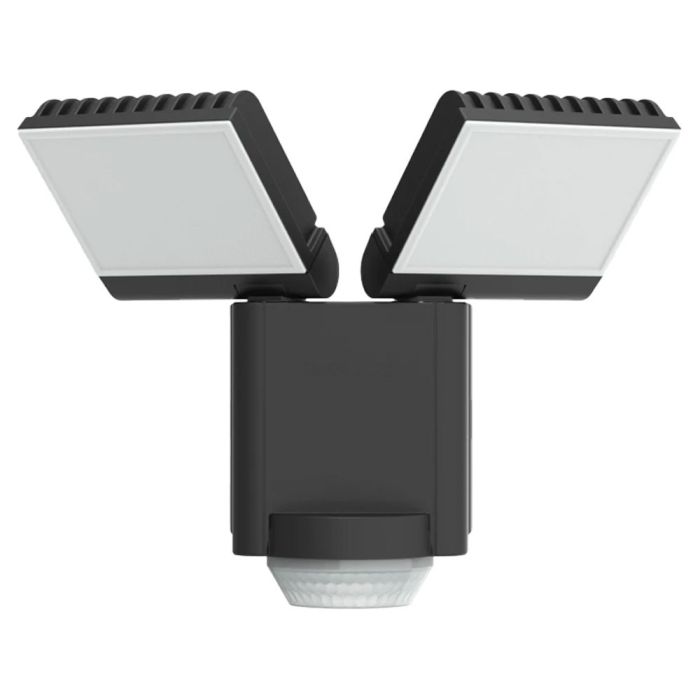

Timeguard Nighteye LED Twin Floodlight PIR 16.5W Black LED201PBK

Timeguard Nighteye LED201PBK — 16.5W Twin Head LED Floodlight with Dual PIR, 4000K, IP65 IK07, 1900lm, 4kV Surge Protection, Black.

The Timeguard Nighteye LED201PBK is a twin head LED floodlight combining dual PIR detection, photocell control, and manual override in a single fitting — a true 3-in-1 control solution for residential external lighting. At 16.5W total across two independently adjustable 8W heads, it delivers 1900lm at 120lm/W in 4000K cool white, with IP65 and IK07 ratings, 4kV surge protection, and a 180° PIR detection coverage up to 10m — providing robust, automatic security lighting without the energy waste of a constantly running floodlight.

3-in-1 Control — PIR, Photocell and Manual Override

The LED201PBK combines twist-and-swivel dual PIR sensors, an integrated photocell, and a manual override function in a single unit — giving complete control over when and how the floodlight operates. The PIR activates the light automatically on detection of movement, the photocell prevents daytime triggering regardless of PIR activity, and the manual override holds the light on for up to 6 hours without requiring movement re-triggering. This combination suits residential driveways, garden paths, garages, and external building perimeters where flexible, reliable automatic lighting is needed.

Twin Adjustable Heads for Precise Beam Placement

Two independently adjustable aluminium floodlight heads with frosted diffusers allow each beam to be directed precisely at the area requiring illumination — covering wider zones than a single-head fitting without needing two separate units. Each head delivers 950lm at a 100° beam angle, with the twin configuration providing 1900lm across the illuminated zone. Pan and tilt adjustment on both heads ensures the coverage can be tailored to the specific installation geometry without repositioning the back plate.

PIR Configured for Residential Use

The dual PIR covers a 180° detection angle with a range of up to 10m to the front and 3m to the side — providing broad coverage of driveways and access areas from a single mounting point. Lux setting is adjustable from 0~20 to 1000 lux so the photocell threshold can be set to prevent daytime activation. Hold time is adjustable from 2 seconds to 10 minutes to suit the application, and PIR standby power is just 0.5W. PIR maximum switching capacity is 200W LED — sufficient to trigger linked non-sensor floodlights (LED201BK) wired in series from the same circuit.

Built for Outdoor Longevity

IP65 dust-tight and water-resistant protection with IK07 impact resistance ensures reliable performance in exposed outdoor locations. The polycarbonate housing and aluminium heads provide corrosion-resistant construction across a -20°C to 40°C operating temperature range. 4kV surge protection guards the LED driver against transient voltage events. Rated at 40,000 hours LED lifespan, the LED201PBK is designed to operate for many years without lamp replacement. Class I construction. Energy Rating D.

Key Features of the Timeguard Nighteye Twin PIR LED Floodlight LED201PBK Include:

• 3-in-1 Control — Dual PIR, Photocell & Manual Override in a Single Fitting
• 180° PIR Detection Coverage — Up to 10M to Front, 3M to Side; Adjustable Lux 0~20 to 1000lux
• Manual Override — Holds Light On for Up to 6 Hours Without Re-Triggering
• Adjustable Hold Time — 2 Seconds to 10 Minutes to Suit the Application
• Twin Independently Adjustable Heads — Direct Each Beam Precisely for Maximum Zone Coverage
• 1900lm Total Output at 120lm/W — 2 x 950lm, 4000K Cool White from 16.5W Total
• 100° Beam Angle Per Head — Wide, Even Illumination Across Driveways and Access Areas
• Non-Sensor Floodlights (LED201BK) Can Be Wired in Series and Triggered by This PIR
• 4kV Surge Protection — Guards LED Driver Against Transient Voltage Events
• IP65 Rated — Dust-Tight and Water-Resistant for Exposed External Locations
• IK07 Impact Resistant — Polycarbonate Housing and Aluminium Heads
• LED Lifespan: 40,000 Hours
• Operating Temperature: -20°C to 40°C
• Input Voltage: 220–240V AC / 50–60Hz
• Energy Rating D
• Class I Construction
• Colour: Black
• Width: 164mm
• Height: 180mm
• Depth: 68mm
• Weight: 0.34kg
• Guarantee: 3 Years
