Vent Axia ACM125T 5 Inch Inline Fan with Timer

Product Code 17105020


Add Your Review

Available for Delivery only, change to Fast Delivery Service


exc VAT

£171.53 : inc VAT


inc VAT

£142.94 : exc VAT

  • QTY Unit Price
  • 1-2 £142.94 £171.53
  • 3+ £141.64 £169.97

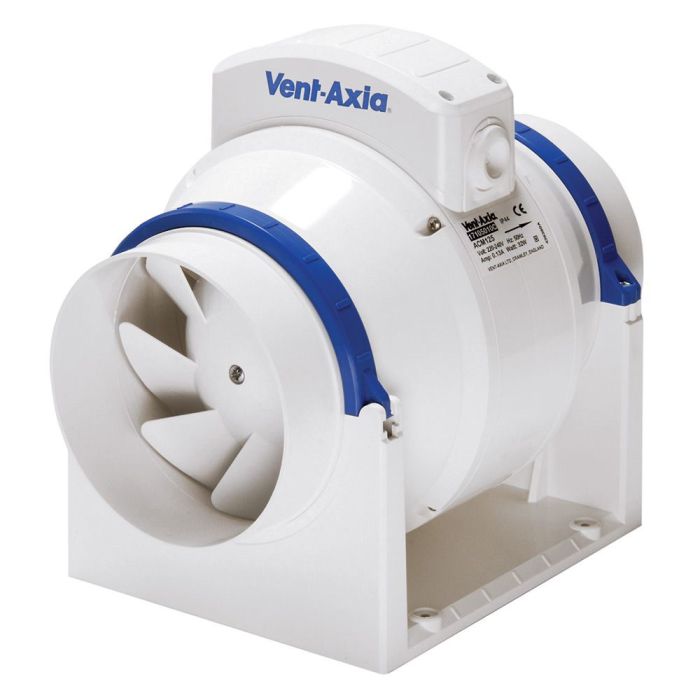

Vent-Axia ACM125T 125mm Inline Extractor Fan.


3 Speed Motor

A powerful motor provides 3 running speed options which can be set during installation to suit requirements

Adjustable Timer

A built-in overrun timer can be adjusted to run for 3-25 minutes after a room has been vacated to ensure adequate ventilation

Simple, Flexible Installation

The compact inline fan benefits from removable motor core and chassis which ensures simple installation within small areas. ACM125T can also be mounted horizontally or vertically, providing a greater choice of installation sites.

Extra Quiet

Running at just 17dBA, ACM125T is quiet enough to run unnoticed whilst in operation.

Energy Efficient

This powerful inline extractor fan runs at only 30W, reducing your energy usage and saving you money.

Designed and manufactured in the UK

ACM100 combines the high quality construction and reliability which makes Vent Axia a favourite throughout the trades.

Key Features of Vent-Axia ACM125T Inline Fan Include:

  • 5 Inch (125mm) Mixed Flow Inline Extractor Fan
  • Integral Adjustable Overrun Timer - 3-25 Minutes
  • Three Speeds (selected at installation)
  • Easy Installation with Removable Motor Core and Chassis
  • Can Be Installed Horizontally and Vertically
  • Whisper Quiet Operation
  • Energy Efficient - Runs at 30W
  • Integral Standard Thermal Overload Protection
  • Wipe Clean Casing
  • Designed & Manufactured in the UK
  • IP Rating: IP44
  • Noise Level: 17-24dB(A)
  • Extraction Rate: 328m³/hr
  • Wattage: 30W
  • Height: 220mm
  • Width: 178mm
  • Depth: 259mm
  • Warranty: 2 years


View all ACM Inline Fans

View all In-Line Extractor Fans

View all Vent Axia Fans

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at or use our Contact Form.

Product Downloads Vent Axia ACM Data Sheet
Extractor Fan Type In-Line Mixed Flow Fan
Manufacturer Part Number ACM125T
Brand Vent Axia
Range Vent Axia ACM Range
Application Domestic
Product Type In-Line Mixed Flow Fan
Key Feature Powerful Energy Efficient In-Line Fan
Mounting Ceiling Void, Loft
Bathroom Zone Zone 2
Control Type Overrun Timer
Timer Adjustment 3 to 25 Minutes
Maximum Airflow Rate 331m³ Per Hour
Maximum Airflow Rate 92L Per Second
Revolutions Per Minute 2400 RPM
Spigot Diameter 125mm or 5 Inch
Installation Type In duct
Maximum Duct Length 8 meters
Suitable Ducting Types Rigid or Flexible
Fixings Included No
Duct Included No
Wattage 20W
Voltage 220 - 240V AC
Fuse Rating Required 3A
Overload Protection Yes
Long Life Motor AC Motor
Maximum Pressure 100Pa
Sound 24 dB(A)@3m
Fan Speed Settings 3 Speed (set on installation)
IP Rating IP44
Double Insulated Yes
Earth Required No
Maximum Operating Temperature 50°C
Finish White
Height 124mm
Width 178mm
Depth 259mm
Weight 2kg
Building Code Complaint Yes
BEAB Approved No
Additional Approvals
Warranty 3 Years
