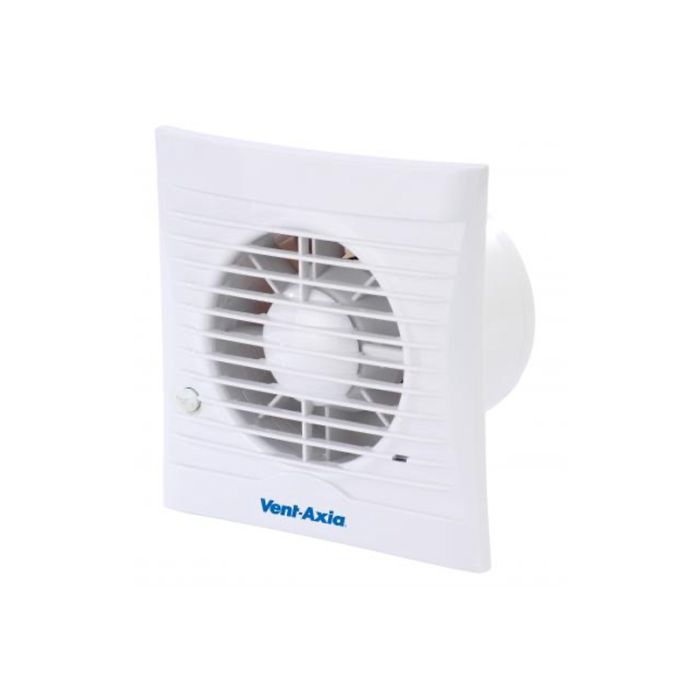

Vent Axia Silhouette 100SVT 4 Inch Bathroom Fan 12v SELV Timer 441512

Product Code 441512

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£130.43

exc VAT

£156.52 : inc VAT

£156.52

inc VAT

£130.43 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £130.43 £156.52
  • 3+ £128.96 £154.75

Qty:

//

Vent-Axia Silhouette 100SVT Lo-Carbon Axial Extractor Fan Timer. 100mm slimline extractor fan featuring the ground-breaking Vent-Axia Lo Carbon DC Motor, helping to reduce your energy usage and save you money. An extremely energy-efficient and cost-effective solution for your household ventilation.

Vent-Axia 441512 possesses the slim, discreet design found throughout the Silhouette range, boasting a profile of only 17mm and the option for wall ceiling and window mounting, ideal for rooms with limited horizontal space. Quieter than an average extractor fan, the Silhouette 100SVT runs at as low as 34dBA. An ingress protection rating of IPX7, integrated power indication light and backdraught shutter makes the Silhouette 100SVT the perfect fan for toilet and bathroom ventilation.

The fan provides single speed operation, controlled by an integral adjustable overrun timer, allowing for operation between 5-30 minutes after a room has been vacated, helping to reduce your energy usage and save you money. An extremely energy-efficient and cost-effective solution for your household ventilation.

Silhouette 100SVT can be converted to function as an SELV fan (Safety Extra Low Voltage). The improved IPX7 rating and SELV functionality allows for fitting inside of Bathroom Zone 1. Making the fan safe for usage as a shower extractor fan, or within the splash zone of a bath.

Features of Vent-Axia 441512:

  • Toilet / Bathroom Extractor Fan
  • Integral Timer - adjustable between 5-30 minutes
  • SELV compatible for Bathroom Zone 1 installation
  • Energy-saving Lo-Carbon motor
  • Complies with current Building Regulations Approved Document F&L
  • Discreet, 17mm low profile design
  • Two speed options (selected at installation)
  • Quiet operation
  • Decibel level (at 3m): 34dBA (low speed), 38dBA (high speed)
  • Extraction rate (m³/h): 60m³/h (low speed), 108m³/h (high speed)
  • Extraction rate (l/s): 17l/s (low speed), 30l/s (high speed)
  • Wattage: 3.4W (low speed), 8.7W (high speed)
  • Integral backdraught shutter maintaining insulation and privacy
  • Indication light
  • Suitable for wall, ceiling, window, and panel mounting
  • IP rating: IPX7
  • Height: 160mm
  • Width: 160mm
  • Depth: 90mm
  • Projection: 17mm
  • Inlet Diameter: 99mm
  • Inlet Depth: 77mm
  • Voltage: 230V
  • Warranty: 5 year motor guarantee
  • Manufactured by Vent Axia
  • Part Code: Vent Axia 441512



View all Vent Axia Silhouette Extractor Fans

View all Vent Axia Fans

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Specification Sheet
  • Toilet / Bathroom Extractor Fan
  • Integral Timer - adjustable between 5-30 minutes
  • SELV compatible for Bathroom Zone 1 installation
  • Energy-saving Lo-Carbon motor
  • Complies with current Building Regulations Approved Document F&L
  • Discreet, 17mm low profile design
  • Two speed options (selected at installation)
  • Quiet operation
  • Decibel level (at 3m): 34dBA (low speed), 38dBA (high speed)
  • Extraction rate (m³/h): 60m³/h (low speed), 108m³/h (high speed)
  • Extraction rate (l/s): 17l/s (low speed), 30l/s (high speed)
  • Wattage: 3.4W (low speed), 8.7W (high speed)
  • Integral backdraught shutter maintaining insulation and privacy
  • Indication light
  • Suitable for wall, ceiling, window, and panel mounting
  • IP rating: IPX7
  • Height: 160mm
  • Width: 160mm
  • Depth: 90mm
  • Projection: 17mm
  • Inlet Diameter: 99mm
  • Inlet Depth: 77mm
  • Voltage: 230V
  • Warranty: 5 year motor guarantee
  • Manufactured by Vent Axia
  • Part Code: Vent Axia 441512
