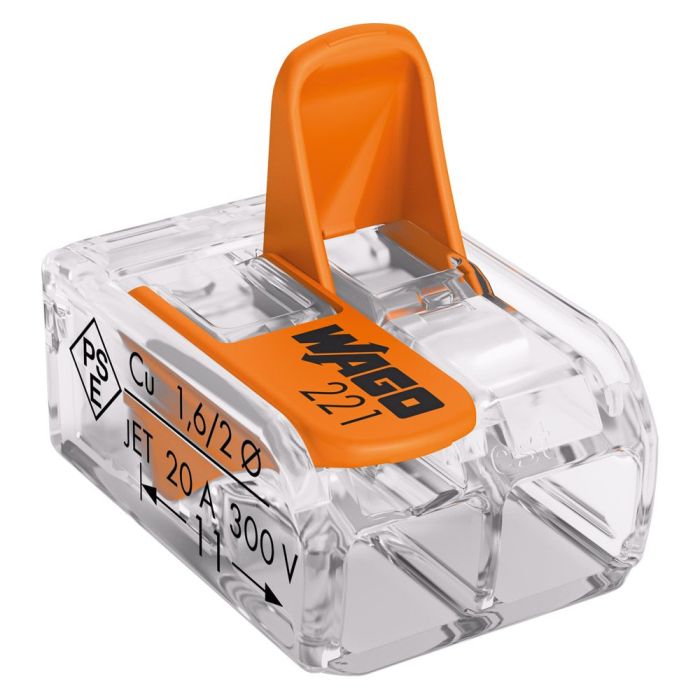

Wago 221-412 32A compact 2 way lever terminal block connector 4mm. Supplied as a pack of 100. Wago connectors are designed for ease of use and are ideal for saving electricians time and money.
Wago 221 connectors benefit from simple, effective design and are packed with features to provide the easiest possible installation. Wago 221 features a compact design, ideal for space restricted applications, maximising the space for wiring inside of a junction box.
Wiring is fast and simple, utilising a simple lever clamp system, requiring no tools for completion whilst remaining quick, easy and secure. Transparent housing allows for visual inspection of the connection check for proper insertion of the wire, whilst a handy length indicator details the correct length the wire should be stripped, ensuring that all live conductors are protected from accidental contact. The connector allows for solid, stranded or fine stranded cables to be connected without the need for tools.
2 test ports are provided, allowing for easy testing for all standard test probes.
Our Wago connectors 221 range includes options for 3 Terminal and 5 Terminal
Features of Wago 221-412:
- 2-way terminal block
- Supplied as a pack of 100
- Requires cable stripped length of 11mm
- Reusable
- 2-conductor connector with operating levers
- Easy termination via reduced operating force
- Solid conductor size: 0.2mm² to 4mm²
- Stranded conductor size: 0.2mm² to 4mm²
- Flexible conductor size: 0.14mm² to 4mm²
- Two test slots for all standard test probes
- Max current: 32A
- Max voltage: 450V
- Height: 8.3mm
- Width: 13.1mm
- Depth: 18.6mm
- Operation temperature up to 85°C
- Compliant with EN 60664
- Product Code: 221-412
