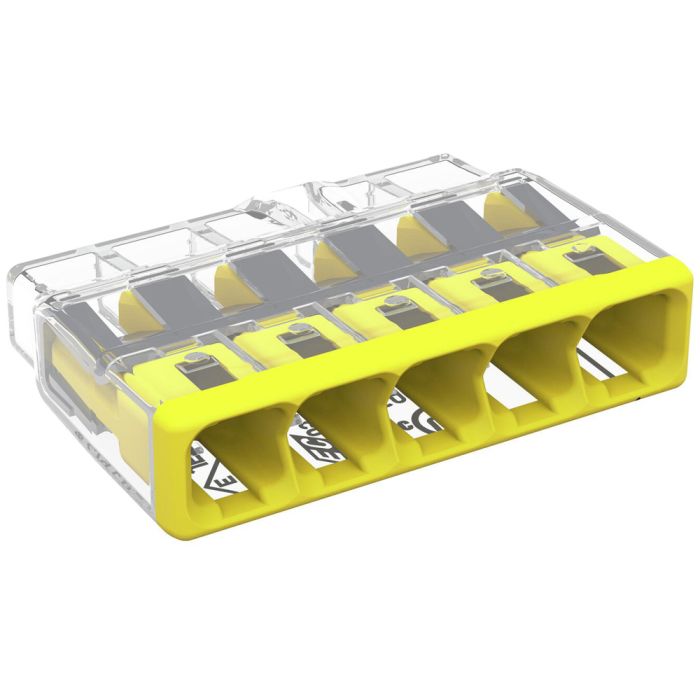

Wago 2773-405 4mm 5-Way Push Connector 32A 60 Pack

Wago 2773-405 wire terminal block rated at 32 Amps. An easy to use compact push wire terminal block for use inside a junction box. Suitable for 5 cable terminations. Supplied as a pack of 60.

Installation is fast and easy, simply strip the wires and push into place in the terminal block. The integrated cable clamp connection holds the cables securely in place. A fantastic, reliable option for saving you time on site. The 2773 Wago connector range are also fully reusable, with no loss of conductivity, fantastic for long term usage.

A sturdy, transparent housing allows for visual inspection of the cable terminations, ideal for ensuring cables have been stripped to the correct length and proper insertion has been achieved. Any combination of conductor sizes is possible. When stripped to the correct length all live conductors are protected from accidental contact.

An easy access test slot is provided, suitable for all standard test probes.

For usage with solid and stranded core cables up to 4mm

Features of Wago 2773-405:

• New compact design
• Can be reused time after time with no loss of conductivity
• Max Cable: 4mm
• 5 conductor connectors
• Maximum current: 32 Amp
• Max Voltage: 450V
• Surrounding air operating temperature: 85°C
• Continuous operating temperature: 105°C
• Colour: Yellow
• Type: Push-wire connection
• Height: 6.3mm
• Width: 26mm
• Depth: 18.6mm
• Supplied as a pack of 60
• Compliant with EN 60669
