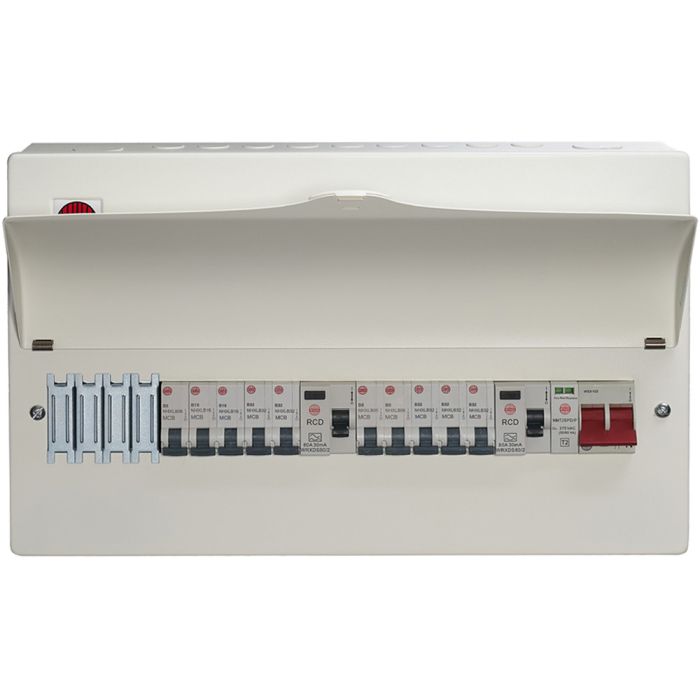

Wylex 14 Way Dual RCD Consumer Unit High Integrity with SPD Populated

Wylex WNM1773/1 14 Way High Integrity Flexible Surge Protected 18th Edition Consumer Unit. Part of the extremely popular Wylex NM Series, a favourite of the trades with easy installation and high quality construction.

WNM1773/1 is supplied with all incomer devices including 1 x 100A Main Switch Isolator, 1 x Type 2 SP, 2 x 80A 30mA RCDs and 10 MCBs ( 3 x 6A, 2 x 16A, 5 x 32A) alongside 4 additional blanks.

Designed for flexibility of installation, the consumer unit may be configured as a Dual RCD (Rated at 80A) or as a High Integrity consumer unit, with space for RCBOs. Perfect for usage throughout a wide range of applications. All mission critical circuits may be isolated separately through the use of RCBOs, this is ideal for the protection of fire alarms, security systems and fridge freezers.

Installation is fast an simple. Cable entries are available on all sides of the unit whilst a raised interior maximises wiring space for fast and simple connection. Neutral and earth bars are mounted to the top of the enclosure. Circuit identification labels are provided, giving clear understanding of outgoing ways.

Packed with safety features to provide peace of mind over the safety of your home, including an all metal enclosure finished in low smoke and fume paint, a lockable lid and full compliance with BS EN 60439-3

WNM1773/1 is a discreet, unobtrusive fitting with a slimline exterior and a sleek, curved lockable lid with a clean white finish. Ideal for usage throughout modern interior decors.

Features of Wylex WNM1773/1:

• Part of the Wylex NM Series
• High Integrity Consumer Unit
• For residential and commercial use (single phase installations)
• Number of ways: 14 usable Ways
• Complete with: 1 x 100A double pole Main Switch, 1 x Type 2 SPD (pre wired and connected), 2 x Type A 80A RCD
• MCBs: 3 x 6A, 2 x 16A, 5 x 32A
• SPDs: 1 x Type 2 SPD
• May be configured as a Dual RCD or High Integrity Consumer Unit
• Flexible Busbar
• Cable entries provided on all sides
• Low smoke and fume paint
• Lockable lid
• Circuit identification labels give a clear understanding of outgoing ways
• Fully compliant with BS EN 60439-3
• Compliant with 18th Edition Wiring Regulations
• Height: 261mm
• Width: 438mm
• Depth: 121mm
