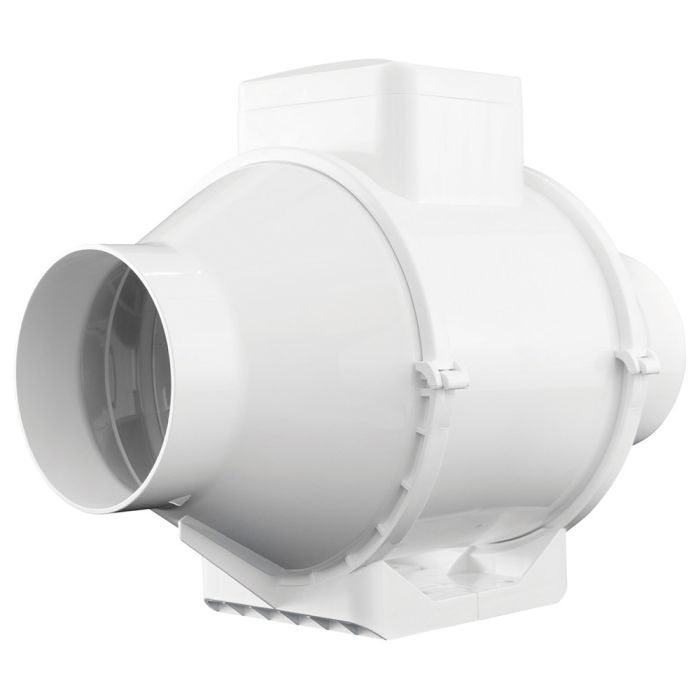

Xpelair XIMX100PLUS 100mm Inline Fan Powerful Two Speed

Product Code XIMX100 Plus

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£73.33

exc VAT

£87.99 : inc VAT

£87.99

inc VAT

£73.33 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £73.33 £87.99
  • 3+ £72.43 £86.92

Qty:

Xpelair XIMX100PLUS 93080AW 4 Inch two speed inline fan is a high performance fan designed to extract large volumes of air at low noise levels.

The XIMX100PLUS is specifically designed for loft fitting, effectively extracting stale air and humidity from bathrooms and shower rooms whilst offering the benefits of a discreet and hassle-free installation.Ventilation can be tailored to your requirements with two-speed options - 180m³/hr and 245m³/hr - selectable at installation. An easily accessible terminal box simplifies the electrical connection, ensuring a straightforward and efficient installation process.

Features of Xpelair XIMX100PLUS Two Speed Inline Fan include:

  • Xpelair XIMX100PLUS 93080AW 4" 2 Speed Inline Fan
  • Centrifugal impellers for improved airflow
  • Complies with building regulations Part F for bathrooms
  • Complete with a convenient mounting cradle which makes installation or subsequent inspection sample
  • IPX4 Rated
  • Material: ABS
  • Finish: Gloss
  • Power consumption: 25W
  • Air Flow: 245/180 m³/hr
  • Air Flow: 68/50 litres/sec
  • Decimal level: 32/27dB(A) at 3m
  • Duct Diameter: 4" / 100mm
  • Voltage: 240V
  • Height: 249mm
  • Width: 311mm
  • Depth: 210mm
  • Weight: 2.15kg
  • 2 Year Warranty

View all Xpelair Ventilation Fans

View all Inline Extractor Fans

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Specification Sheet, Instruction Manual
Manufacturer Part Number 93080AW
Brand Xpelair
Range XIMX
Product Type In-Line Mixed Flow Extract Fan
Key Feature High Velocity Air Extraction
Mounting Ceiling Void, Loft
Bathroom Zone Zones 1, 2 & 3
Control Type Remote Switch
Maximum Airflow rate m³/h 245m³ Per Hour
Maximum Airflow Rate l/s 68L Per Second
Spigot Diameter 100mm or 4 Inch
Installation Type In duct
Cradle Included Yes
Wattage 25W
Voltage 230 - 240V AC
Sound max. 32 dB(A)@3m
Fan Speed Settings 2 Speed (set on installation)
IP Rating IPX4
Maximum Operating Temperature 60°C
Finish White
Height 249mm
Width 311mm
Depth 210mm
Weight 2.15kg
Building Code Complaint Yes
Warranty 2 Years
