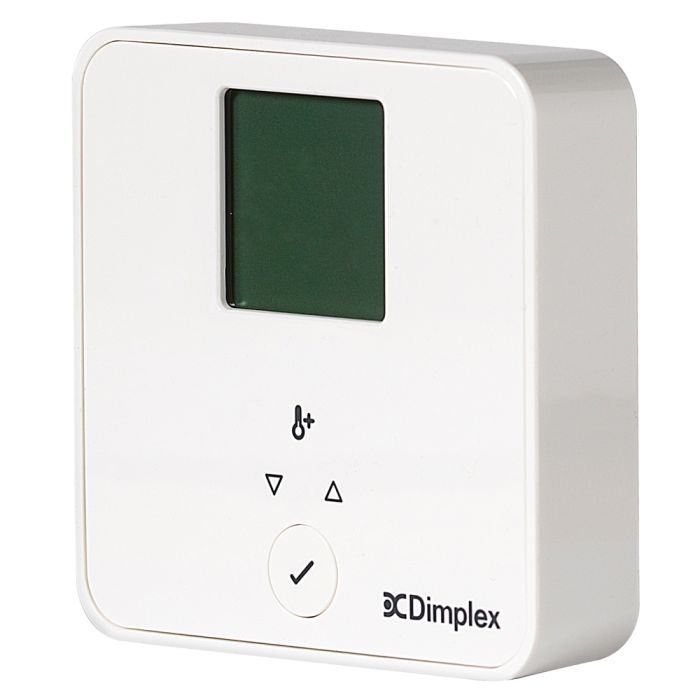

Dimplex DWC | Wall Controller for PLXENC Panel Heaters

Dimplex DWC is a wall mounted controller which allows room occupants to adjust PLXENC panel heaters within the parameters set by buildings managers.

Using the ConfigR app (free to download on iOS and Android) building managers can programme PLXENC heaters and limit the adjustments that room occupants are permitted to make. This Bluetooth control features a portrait orientated display with 4 touch buttons which occupants can use to make adjustments between pre-defined parameters.

Programmable features available to building managers via the ConfigR app include boost mode, 7-day programme, 4-daily time period programme, runback, adaptive start, open window detection and lock. The highly accurate, digitaly controlled thermostat is adjustable between 7 and 26°C.

Adaptive start technology ensures that the heater reaches the desired temperature at the programmed time. Open window technology prevents energy wastage through open doors and windowa by detecting drafts and automatically turning off heating functions until it detects the draft has gone.

Diagnostics and firmware updates can be carried out between the DWC and PLXENC heaters via the ConfigR App.

Please Note: 1 DWC unit is required per PLXENC Panel Heater.

Key Features of Dimplex DWC Wall Controller for PLXENC Panel Heaters Include:

• Wall mounted Controller for use with PLXE NC Panel Heaters
• Building Managers can Set Adjustment Parameters for Room Occupants via ConfigR App
• Room Occupants can Adjust Panel Heater Settings Between Pre-Defined Parameters Via the Touch Buttons on the Wall Control
• Modes & Functions Include Boost, Open Window Detection, Adaptive Start, 7-Day Programme, 4-Daily Time Period Programme, Runback and Lock
• Highly-Accurate Thermostat Adjustable Between 7 & 26°C
• Supplied with 2xAA Batteries
• Height: 100mm
• Width: 100mm
• Depth: 27mm
• Weight: 0.16kg
• Approvals: RED, RoHS, REACH, WEEE
• Warranty: 2 Years

View Dimplex PLXENC Panel Heaters
