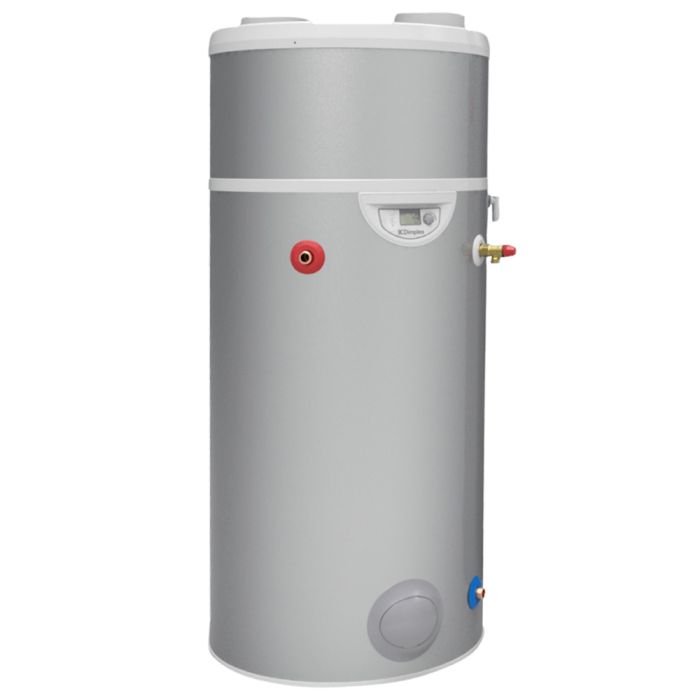

Dimplex Edel 200L Hot Water Heat Pump With WIFI EDL200UK-630RF

Product Code EDL200UK-630RF

1 reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service


exc VAT

£2,096.95 : inc VAT


inc VAT

£1,747.46 : exc VAT

  • QTY Unit Price
  • 1-2 £1,747.46 £2,096.95
  • 3+ £1,743.89 £2,092.67


Dimplex Edel EDL200UK-630RF hot water heat pump is an electric boiler with a 200L capacity.

A highly efficient heat pump allows this hot water cylinder to produce domestic hot water effectively and efficiently whilst reducing dwelling emissions. The Edel hot water cylinder consumes five times less electricity than standard electric boilers. Comprising of an inner stainless steel vessel, the hot water heat pump is mounted on top to efficiently produce hot water by extracting heat from external air via insulated ducting (available separately).

The Edel RF can also be controlled remotely via the Dimplex Hub for optimum performance and economy with personalised comfort. Simply connect your Dimplex Edel electric water heater to the Dimplex Hub (sold separately) via WiFi or ethernet to remotely adjust and monitor your water heating at any time, from anywhere with Dimplex's Control app

The Dimplex Edel hot water heat pump is ideal for installation in a range of residences including apartments thanks to it's compact dimensions. It's quiet operation also makes it a desirable choice for smaller apartments in particular, where it may be installed close to main living areas or bedrooms. The soundproof hood and anti-vibration compressor pads ensure that the hot water cylinder runs virtually unnoticed.

The stainless steel tank is guaranteed for 5 years and all other parts are covered by a 2 year guarantee for peace of mind.

Features of the Dimplex Edel Hot Water Heat Pump EDL200UK630RF Include:

  • Highly Energy Efficient, Using up to 5 Times Less Electricity Than Standard Electric Boilers
  • Large 200L Capacity
  • Can be Controlled and Monitored Remotely Via the Dimplex Hub and App
  • Quiet Operation with Soundproof Hood and Anti-Vibration Compressor Pads
  • Compact Dimensions
  • Patented High Performance Heat Exchanger with Defrost Mode
  • Helps to Pass Part L of Building Regulations When Specifying Electric Heating
  • Stainless Steel Tank has a 5 Year UK Guarantee (2 Year Guarantee all Other Parts)
  • Insulation: 45mm PU Foam with PVC Outer
  • IP Rating: IPX1
  • Energy Rating A
  • Heat up From Cold (10°c): 7hrs 15mins
  • Maximum Operating Pressure: 6 Bar
  • Power Input: 1900W (700W Heat Pump + 1200W Immersion)
  • Max Output At 45°c: 2500W (1300W Heat Pump +1200W Immersion)
  • Air Flow/Volume (m3/h): 400
  • Heat Loss in 24 Hours (kW/24hr): 2
  • Potable Water Temperature (°c): 65
  • Air Operating Range (°c): -7 to +35
  • Achievable Hot Water Temperature Via Heat Pump (°c) 60 Max
  • Airflow (m³/h): 320 to 400
  • Sound Pressure Level at 2mdB(A): 37 (speed 1)/ 40 (speed 2)
  • Insulation: 45mm PU Foam with PVC Outer
  • T&P Valve Factory Fitted to Comply with Building Regulation G3
  • Voltage: 230V
  • Requires MCB Type C 16 Amp
  • Maximum Ducting Length (Intake and Outlet): 20m
  • Air Duct Diameter: 160mm
  • Height: 1460mm
  • Width: 630mm
  • Weight: 56.5kg


Model NoCapacityDimensions (HxW)Dimplex App Controlled
EDL200UK-630 200L 1460x630mm No
EDL200UK-630RF 200L 1460x630mm Yes with Hub
EDL270UK-630RF 270L 1780x630mm Yes with Hub
EDL270UK-630 270L 1780x630mm No
EDL170UK-520RF 170L 1760x520mm Yes with Hub


View all Dimplex Edel Hot Water Heat Pumps

View All Water Heating


If you need some help, would like to take advantage of our Price Promise or have a large order to place, please give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Dimplex EdelRF Data Sheet, Dimplex EdelRF Installation Manual
Model Number EDL200UK-630RF
Item Code 101587
Brand Dimplex
Range Edel
Capacity 200L
Max. Water Temperature 60°C
Air Operating Range -7 to +35°C
Max. Electrical Input (Heat Pump + Immersion) 700+1200=1900W
Max. Thermal Output (Heat Pump Only) 1300W
Max. Power Output (Heat Pump + Immersion) 1300+1200=2500W
Airflow / Volume 320 to 400m³/hr
Sound Pressure at 2m 37 (Speed 1) / 40 (Speed 2)dB(A)
Refrigerant R290/0.15/kg
Standing Heat Loss 1.61 kWh/24hr
Air Ducting Method Separate Inlet and Outlet to Exterior
Heating Time from Cold (10°C) 7h15m
Coefficient of Performance 3.36
Cylinder Material Stainless Steel
Cylinder Insulation Type 50mm PU Foam with PVC Outer
Refrigeration Heat Exchanger Double Walled Separation From Potable Water
Max. Operating Pessure 6 bar
Max. Condensate Production 0.3L/h
Integrated Electric Immersion 1200W
Max. Temperature with Immersion Heater 65°C
Air Duct Diameter 160mm
Max. Ducting Pressure Drop 220Pa at min. Air Flow Rate 320m³/hr
Water Connections M 3/4""""
Condensate Tube 18/24mm
Electrical Supply 230V-50Hz-8A
IP Rating IPX4
MCB Type C 16A
Water Regulations G3 KIWA Approval to EN12897
T&P Valve Factory Fitted
Height 1460mm
Width 630mm
Weight 56.5kg
Warranty 5 Year Tank (2 Years Other Parts)
