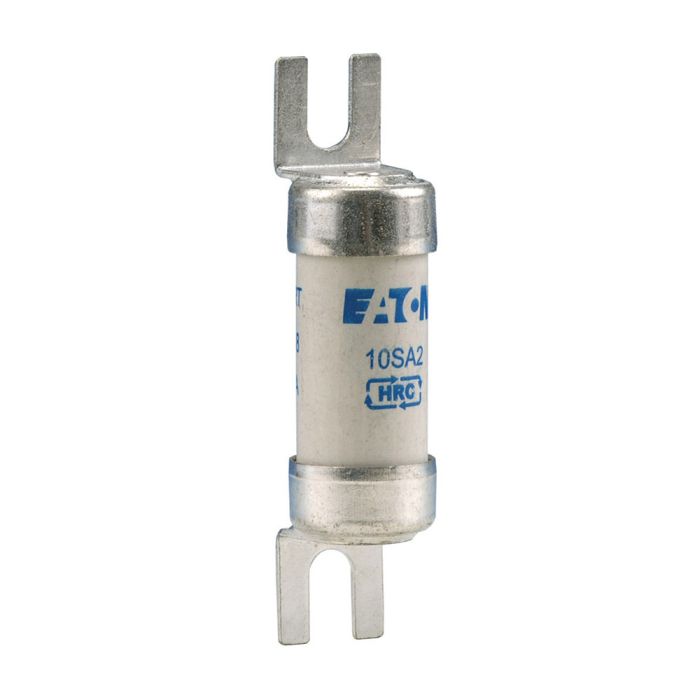

Eaton MEM Fuse 10SA2 10A HRC Oc A1 Type S[NITD10]
Size33mm x 14mm x 54mm x 11mm x 0.8mm x 44.5mm x 4.8mm
StandardsASTA 20, BS EN 60269-1 (BS 88: Part 1), BS 88: Part 2
Voltage Rating415V AC
Current Rating10A
Length54mm
Diameter14mm
Fixing Centre44.5mm
Operating Temperature40 to 60°C
Breaking Capacity80kA @ 415V AC
Back to top
Eaton MEM Fuse 10SA2 10A HRC Oc A1 Type S[NITD10]
No specification details available.
