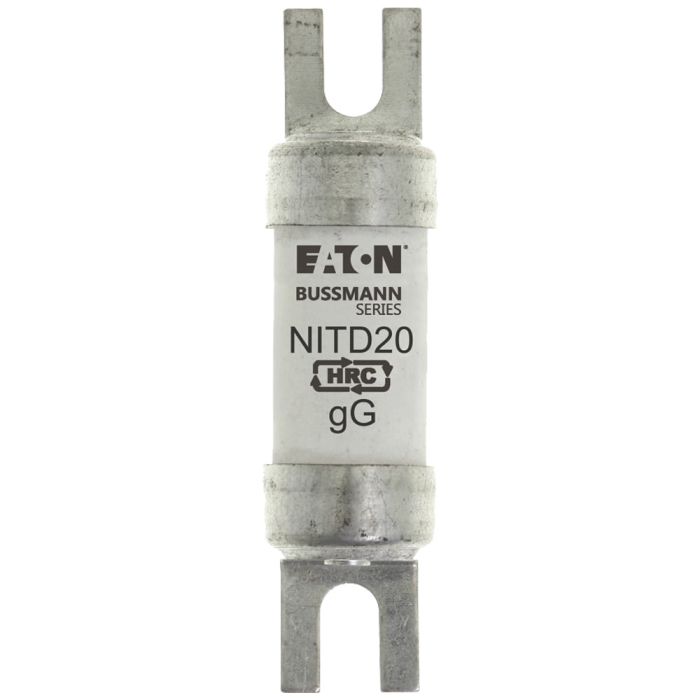

Eaton MEM Fuse 20SA2 20A HRC Oc A1 Type S[NITD20]
Type S-Type Compact
Size 33mm x 14mm x 54mm x 11mm x 0.8mm x 44.5mm x 4.8mm
Standards ASTA 20, BS EN 60269-1 (BS 88: Part 1), BS 88: Part 2
Voltage Rating 415V AC
Current Rating 20A
Length 54mm
Diameter 14mm
Fixing Centre 44.5mm
Operating Temperature 40 to 60°C
Breaking Capacity 80kA @ 415V AC
