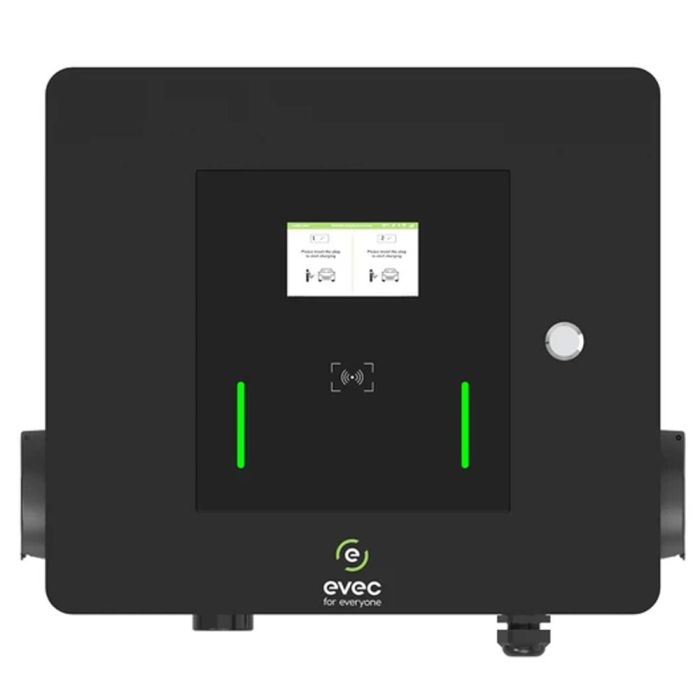

EVEC vecSPRINT 7kW Dual Socket EV Charger EDW01

evec EDW01 — 2x7.4kW Dual Socket Wall Mounted EV Charger, part of the vecSPRINT range, with Type 2 sockets and PAS 1899 accessible charging compliance.

Two Charge Points, One Wall-Mounted Footprint

The EDW01 packs two 7.4kW Type 2 sockets into a single unit, so you get double the charging capacity without digging or major groundwork. That makes it a fast, low-disruption fit for workplaces, apartment blocks and car parks where space and installation time both matter.

Built for OZEV-Funded Sites

Businesses adding EV charging under the OZEV workplace charging scheme can claim a grant of up to £14,000 (£350 per socket) for up to 40 charge points, and the EDW01's dual-socket design means each unit counts for two of those sockets. It's also PAS 1899 compliant when installed at the specified height, with a 4.3 inch LCD screen giving drivers clear, step-by-step instructions.

Load Management Without the Guesswork

Dynamic load balancing is supported as standard, automatically sharing available power across multiple chargers in real time so you never overload your electricity feed. Sessions can be started via plug and play, the evec app, or a preferred backend partner, with RFID included for controlled access and OCPP 1.6J SON compliance for network integration.

Protection Built Into the Housing

An IP55-rated, IK10 impact-resistant enclosure covers built-in over current, 6mA DC leakage, surge, and over/under voltage protection. PEN protection is included too, removing the need for a separate earth rod on installation. The unit is certified to CE and UKCA, in line with EN IEC 61851 and EN 62196.

Key Features of the evec vecSPRINT EDW01 Include:

• Two 7.4kW Type 2 Sockets in One Wall Mounted Unit for Space Saving Installation
• Counts Toward OZEV Workplace Charging Scheme Grant of Up to £14,000 (£350 Per Socket)
• Supports Dynamic Load Balancing to Share Power Across Multiple Chargers
• Control via Plug and Play, the evec App, or Your Preferred Backend Partner
• RFID Included as Standard for Secure Access Control
• OCPP 1.6J SON Compliance for Smart Network Integration
• Over the Air Firmware and Software Updates Keep the Charger Future Proof
• Conforms with PAS 1899 Accessible Charging Standard When Installed at the Specified Height
• 4.3 Inch LCD Screen with Clear On Screen Charging Instructions
• Integrated Light Strip for Visibility in Low Light Conditions
• Built In Over Current and 6mA DC Leakage Protection
• Built In PEN Protection Removes the Need for an Earth Rod
• IP55 Ingress Protection and IK10 Impact Protection for Robust Commercial Use
• Rated Power 2x7.4kW Maximum Output
• Input Rating 63A at AC220-240V, 1P+N+PE Supply
• Maximum Output Current 2x32A, Adjustable to 16A, 13A or 10A
• Wall Brackets Included for Straightforward Installation
• Certified to CE and UKCA, EN IEC 61851 and EN 62196
• Height 580mm
• Width 390mm
• Depth 130mm
• Weight 13.8kg
• 3 Year Warranty
