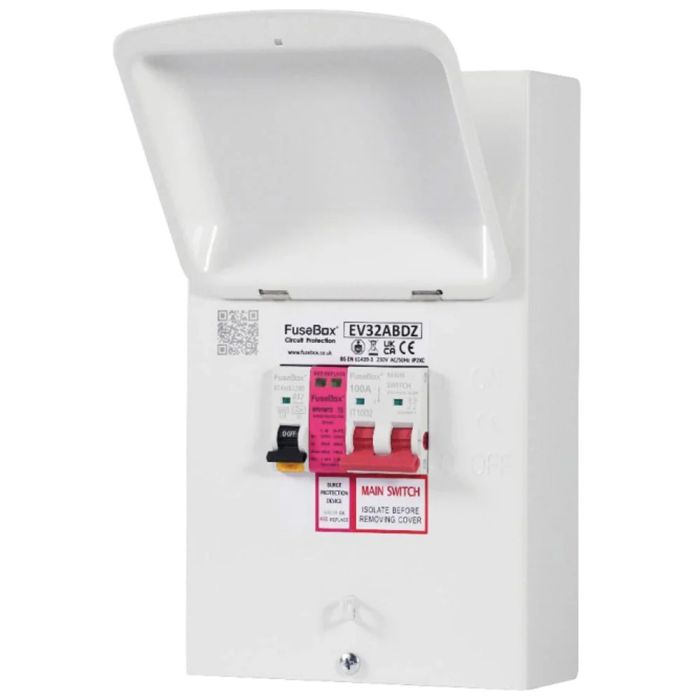

Fusebox EV Consumer Unit with SPD and 32A Main Switch

Designed specifically for EV charging installations, the FuseBox EV32ABDZ 32A Consumer Unit provides safe and compliant distribution for single EV charge points. Compact yet robust, it features a Type A RCBO with 6mA DC protection and a Type 2 surge protection device (SPD) to safeguard both users and equipment against overcurrent, residual current, and transient voltage spikes.

The FuseBox EV32ABDZ combines key protective functions in one enclosure — a Type A RCBO (30mA) for residual and overcurrent protection and a T2 SPD for transient surge defence. Its bi-directional RCBO ensures reliable operation under EV charging load conditions, while the steel enclosure (RAL 9001, powder-coated) delivers long-term durability and professional aesthetics. Fully compliant with BS EN 61439-3, it provides installers with a trusted, regulation-ready solution for domestic and light commercial EV installations.

Pre-assembled and compact, the EV32ABDZ is built for quick, tidy installation. A 35mm DIN rail, clearly labelled circuits, and a 16mm² terminal bar capacity simplify wiring and termination. At just 261×152×93mm, it fits neatly beside existing consumer units, helping maintain a clean, consistent look in garage or external installations.

Key features of the Fusebox EV Consumer Unit with SPD and 32A Main Switch:

• 32A single-phase rating — suitable for 7.4kW EV chargers
• Type A RCBO with 6mA DC protection — ensures compliance with 18th Edition Amendment 2
• Type 2 SPD (Surge Protection Device) — safeguards against transient voltage surges
• Bi-directional RCBO — supports all modern EV charger types
• Steel enclosure (RAL 9001) — powder-coated smooth finish for a professional look
• Complies with BS EN 61439-3 — verified performance and safety
• Compact footprint — 261(H) × 152(W) × 93(D)mm; 2.5kg
• 16mm² terminal capacity — easy cable termination for installers
• IP2XC protection degree — suitable for indoor EV applications
• Supplied with circuit identification labels and accessory pack (4E)
