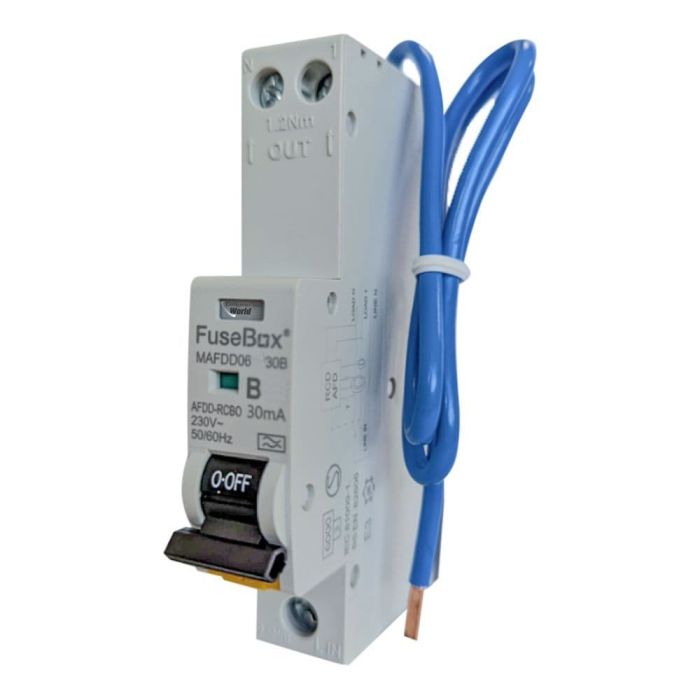

Fusebox Mini RCBO 10A B Curve Double Pole MAFDD061030B

Product Code MAFDD061030B

reviews

Available for Delivery only, change to Fast Delivery Service

£109.38

exc VAT

£131.25 : inc VAT

£131.25

inc VAT

£109.38 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £109.38 £131.25
  • 3+ £108.77 £130.52

Qty:

feefo-reviews

The Fusebox Mini RCBO 10A B Curve Double Pole (Replaces the AFDD061030B) combines arc fault detection and RCBO protection into a single device. Boasting a 30mA earth leakage sensitivity, the FuseBox Mini RCBO 1A offers advanced protection against arc faults (both series and parallel), overload, short circuits, and earth leakage. This single-module device is designed to fit both new and existing FuseBox installations and so is compatible with all Fusebox consumer units.

Thanks to their compact design, Fusebox Mini RCBOs save space without compromising performance, and the Line and Neutral conductors do not need to be disconnected for insulation resistance testing when the lever is in the OFF position.

Features of Fusebox Mini RCBO 10A B Curve Double Pole MAFDD061030B:

  • Compatible with all Fusebox consumer units
  • Replaces any Fusebox RCBO where additional arc fault protection is required
  • Type A sensitivity for AC and pulsating DC currents
  • Protection against arc faults (series and parallel), overloads, short circuits, and earth leakage
  • 1 pole + neutral arc fault detection device (AFDD)
  • Rating: 10A
  • Trip current: 30mA
  • Single-module design for easy installation
  • Combined 30mA miniature RCBO/AFDD functionality
  • Tripping Curve: B
  • Breaking capacity: 6kA
  • 35mm DIN rail mounted
  • Terminal capacity: 10mm² - 16mm²
  • Number of poles: Single pole and neutral
  • Number of modules: 1
  • Voltage: 230V
  • Height: 116mm
  • Width: 17.8mm
  • Depth: 75.8mm
  • Manufacturer Number: MAFDD061030B
  • Standards: IEC 61009-1, BS EN 62606

View all Fusebox Products

View all Consumer Units

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, please give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.
