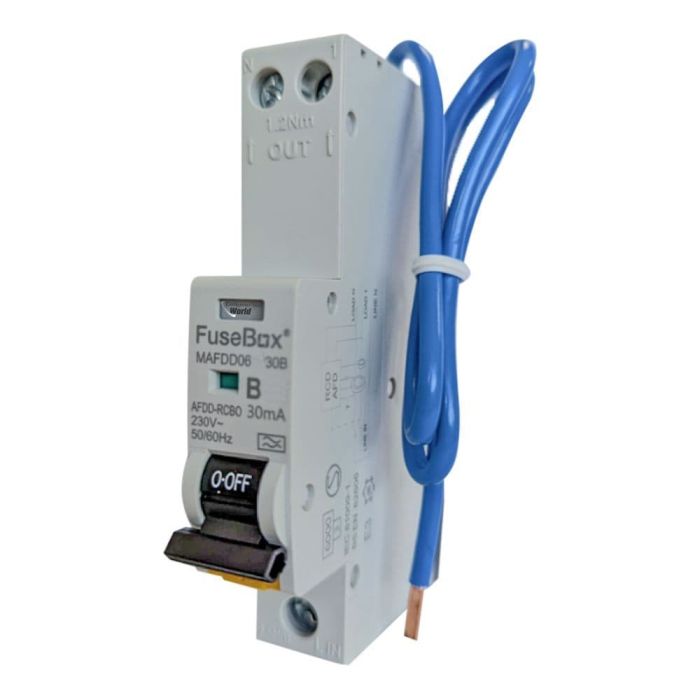

Fusebox AFDD RCBO 16A Type A Double Pole 6kA MAFDD061630B

The Fusebox Mini RCBO 16A B Curve Double Pole (Replaces the AFDD061630B) combines arc fault detection and RCBO protection into a single device. Boasting a 30mA earth leakage sensitivity, the FuseBox Mini RCBO 1A offers advanced protection against arc faults (both series and parallel), overload, short circuits, and earth leakage. This single-module device is designed to fit both new and existing FuseBox installations and so is compatible with all Fusebox consumer units.

Thanks to their compact design, Fusebox Mini RCBOs save space without compromising performance, and the Line and Neutral conductors do not need to be disconnected for insulation resistance testing when the lever is in the OFF position.

Features of Fusebox Mini RCBO 16A B Curve Double Pole MAFDD061630B:

• Compatible with all Fusebox consumer units
• Replaces any Fusebox RCBO where additional arc fault protection is required
• Type A sensitivity for AC and pulsating DC currents
• Protection against arc faults (series and parallel), overloads, short circuits, and earth leakage
• 1 pole + neutral arc fault detection device (AFDD)
• Rating: 16A
• Trip current: 30mA
• Single-module design for easy installation
• Combined 30mA miniature RCBO/AFDD functionality
• Tripping Curve: B
• Breaking capacity: 6kA
• 35mm DIN rail mounted
• Terminal capacity: 10mm² - 16mm²
• Number of poles: Single pole and neutral
• Number of modules: 1
• Voltage: 230V
• Height: 116mm
• Width: 17.8mm
• Depth: 75.8mm
• Manufacturer Number: MAFDD061630B
• Standards: IEC 61009-1, BS EN 62606
